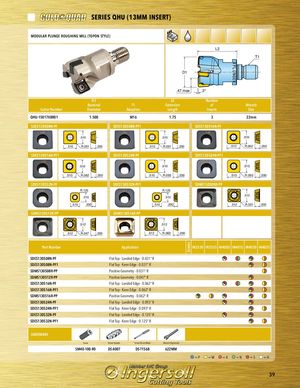

Общий каталог Ingersoll 2016 - 2017 - страница 41

SERIES QHU (13MM INSERT)
MODULAR PLUNGE ROUGHING MILL (TOPON STYLE)

L2
T1

D1

.47 max 2°
D1 L2 Number
Nominal T1 Extension of Wrench
Cutter Number Diameter Adaption Length Inserts Size
QHU-15017X8R01 1.500 M16 1.75 3 22mm
SDES130508N-PF SDES130508N-PF1 SDES130516N-PF
.510 .510 .510
.510 R.031 .200 .510 R.031 .200 .510 R.062 .200

SDES130516N-PF1 SDES130524N-PF SDES130524N-PF1
.510 .510 .510
.510 R.062 .200 .510 R.093 .200 .510 R.093 .200
SDES130532N-PF SDES130532N-PF1 SDMS130508R-PP
R.125 R.125
.512
.510 .510
.510 .200 .510 .200 .512 R.031 .200

SDMS130512R-PP SDMS130516R-PP
.512 .512
.512 R.047 .200 .512 R.062 .200
Grades


Part Number Application IN2530 IN2535 IN4005 IN4015 IN4030 IN4035
SDES130508N-PF Flat Top - Landed Edge - 0.031“ R
SDES130508N-PF1 Flat Top - Keen Edge - 0.031“ R
SDMS130508R-PP Positive Geometry - 0.031“ R
SDMS130512R-PP Positive Geometry - 0.047“ R
SDES130516N-PF Flat Top - Landed Edge - 0.062“ R
SDES130516N-PF1 Flat Top - Keen Edge - 0.062“ R
SDMS130516R-PP Positive Geometry - 0.062“ R
SDES130524N-PF Flat Top - Landed Edge - 0.093“ R
SDES130524N-PF1 Flat Top - Keen Edge - 0.093“ R
SDES130532N-PF Flat Top - Landed Edge - 0.125“ R
SDES130532N-PF1 Flat Top - Keen Edge - 0.125“ R

HARDWARE
Screw Driver Handle Screw Driver Blade Wrench (Optional)
SM40-100-R0 DS-A00T DS-T156B 622MM
=P =M =K =N =S =H

39
