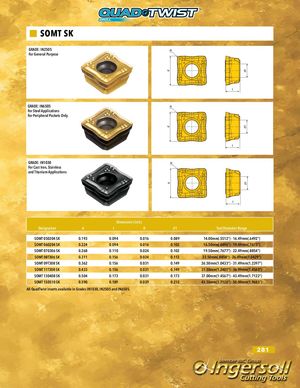

ddd d1d1d1 Date: -.- Name: -.- SOMT SK GRADE: IN2505 R For General Purpose Date: -.- Name: -.- t GRADE: IN6505 R For Steel Applications For Peripheral Pockets Only Date: -.- Name: -.- t GRADE: IN1030 R For Cast Iron, Stainless and Titanium Applications t Dimension (inch) Designation d t R d1 Tool Diameter Range SOMT 050204 SK 0.193 0.094 0.016 0.089 14.00mm(.5512") - 16.49mm(.6492") SOMT 060204 SK 0.224 0.094 0.016 0.102 16.50mm(.6496") - 19.49mm(.7673") SOMT 070306 SK 0.268 0.110 0.024 0.102 19.50mm(.7677") - 22.49mm(.8854") SOMT 08T306 SK 0.311 0.156 0.024 0.112 22.50mm(.8858") - 26.49mm(1.0429") SOMT 09T308 SK 0.362 0.156 0.031 0.149 26.50mm(1.0433") - 31.49mm(1.2397") SOMT 11T308 SK 0.433 0.156 0.031 0.149 31.50mm(1.2401") - 36.99mm(1.4563") SOMT 130408 SK 0.504 0.173 0.031 0.173 37.00mm(1.4567") - 43.49mm(1.7122") SOMT 150510 SK 0.590 0.189 0.039 0.212 43.50mm(1.7126") - 50.00mm(1.9685") All QuadTwist inserts available in Grades IN1030, IN2505 and IN6505. 281
