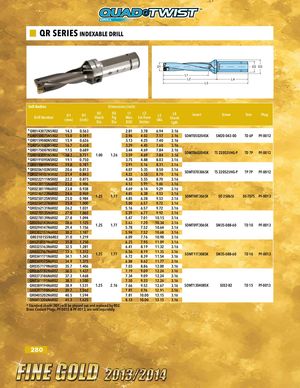

СЕРИЯ СМЕННЫХ СВЁРЛ QR
Корпуса 5xD
| Номер сверла | D1 (мм) | D1 (дюйм) | D2, хвостовик | D3, рис. | L1, макс. глуб. рез. | L2, вылет от держателя | L4, длина хвостовика | L3, общая длина | Пластина | Винт | Torx | Заглушка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * QR0143072N5R02 | 14.3 | 0.563 | 1.00 | 1.26 | 2.81 | 3.78 | 6.94 | 3.16 | SOMT050204SK | SM20-043-00 | TD 6P | PF-0012 |
| * QR0150075N5R02 | 15.0 | 0.591 | 2.96 | 4.02 | 7.17 | 3.16 | ||||||
| * QR0159080N5R02 | 15.9 | 0.626 | 3.13 | 4.25 | 7.40 | 3.16 | ||||||
| * QR0167083N5R02 | 16.7 | 0.658 | 3.29 | 4.45 | 7.60 | 3.16 | SOMT060204SK | TS 22052I/HG-P | TD 7P | PF-0012 | ||
| * QR0175087N5R02 | 17.5 | 0.689 | 3.44 | 4.69 | 7.84 | 3.16 | ||||||
| * QR0183091N5R02 | 18.3 | 0.721 | 3.59 | 4.69 | 7.84 | 3.16 | ||||||
| * QR0191095N5R02 | 19.1 | 0.750 | 3.75 | 4.88 | 8.03 | 3.16 | ||||||
| * QR0198099N5R02 | 19.8 | 0.781 | 3.91 | 5.16 | 8.31 | 3.16 | ||||||
| * QR0206103N5R02 | 20.6 | 0.813 | 4.07 | 5.35 | 8.50 | 3.16 | SOMT070306SK | TS 22052I/HG-P | TP 7P | PF-0012 | ||
| * QR0214107N5R02 | 21.4 | 0.843 | 1.25 | 1.77 | 4.22 | 5.55 | 8.70 | 3.16 | ||||
| * QR0222111N5R02 | 22.2 | 0.875 | 4.38 | 5.55 | 8.70 | 3.16 | ||||||
| * QR0230115N6R02 | 23.0 | 0.906 | 4.53 | 5.91 | 9.06 | 3.16 | ||||||
| * QR0238119N6R02 | 23.8 | 0.938 | 4.69 | 6.14 | 9.29 | 3.16 | SOMT08T306SK | SO 25065I | DS-T07S | PF-0013 | ||
| * QR0246123N6R02 | 24.6 | 0.969 | 4.85 | 6.38 | 9.53 | 3.16 | ||||||
| * QR0250125N5R02 | 25.0 | 0.984 | 4.85 | 6.38 | 9.53 | 3.16 | ||||||
| * QR0254127N6R02 | 25.4 | 1.000 | 5.00 | 6.57 | 9.72 | 3.16 | ||||||
| * QR0262131N6R02 | 26.2 | 1.031 | 5.16 | 6.57 | 9.72 | 3.16 | ||||||
| QR0270135N6R02 | 27.0 | 1.063 | 5.31 | 6.77 | 9.92 | 3.16 | ||||||
| QR0278139N6R02 | 27.8 | 1.094 | 1.77 | 5.47 | 7.01 | 10.15 | 3.16 | SOMT09T306SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0286143N6R02 | 28.6 | 1.125 | 5.63 | 7.20 | 10.34 | 3.16 | ||||||
| QR0294147N6R02 | 29.4 | 1.156 | 5.78 | 7.52 | 10.64 | 3.16 | ||||||
| QR0302151N6R02 | 30.2 | 1.187 | 5.94 | 7.52 | 10.68 | 3.16 | ||||||
| QR0310155N6R02 | 31.0 | 1.219 | 6.09 | 7.76 | 10.90 | 3.16 | ||||||
| QR0318159N6R02 | 31.8 | 1.250 | 6.25 | 7.95 | 11.09 | 3.16 | ||||||
| QR0325163N6R02 | 32.5 | 1.281 | 1.77 | 6.41 | 8.19 | 11.32 | 3.16 | SOMT11T308SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0333167N6R02 | 33.3 | 1.312 | 6.56 | 8.19 | 11.35 | 3.16 | ||||||
| QR0341171N6R02 | 34.1 | 1.343 | 6.72 | 8.39 | 11.54 | 3.16 | ||||||
| QR0349175N6R02 | 34.9 | 1.375 | 6.88 | 8.62 | 11.77 | 3.16 | ||||||
| QR0357179N6R02 | 35.7 | 1.406 | 7.03 | 8.86 | 12.00 | 3.16 | ||||||
| QR0365182N6R02 | 36.5 | 1.437 | 7.19 | 9.09 | 12.24 | 3.16 | ||||||
| QR0373186N6R02 | 37.3 | 1.468 | 7.34 | 9.09 | 12.24 | 3.16 | ||||||
| QR0381191N6R02 | 38.1 | 1.500 | 7.50 | 9.33 | 12.26 | 3.16 | ||||||
| QR0389194N6R02 | 38.9 | 1.531 | 1.25 | 2.16 | 7.66 | 9.53 | 12.67 | 3.16 | SOMT130408SK | SE02-82 | TD 15 | PF-0013 |
| QR0397198N6R02 | 39.7 | 1.562 | 7.81 | 9.76 | 12.91 | 3.16 | ||||||
| QR0405202N6R02 | 40.5 | 1.594 | 7.81 | 10.00 | 13.15 | 3.16 | ||||||
| QR0413206N6R02 | 41.3 | 1.625 | 8.13 | 10.00 | 13.15 | 3.16 |
* Стандартный хвостовик (R01) будет снят с производства и заменён на R02.
Латунные заглушки для СОЖ, PF-0012 и PF-0013, продаются отдельно.
