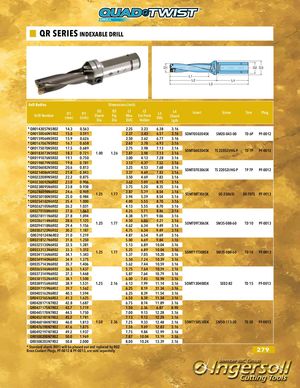

СЕРИЯ СМЕННЫХ СВЁРЛ QR
Корпуса 4xD
| Номер сверла | D1 (мм) | D1 (дюйм) | D2, хвостовик | D3, рис. | L1, макс. глуб. рез. | L2, вылет от держателя | L4, длина хвостовика | L3, общая длина | Пластина | Винт | Torx | Заглушка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * QR0143057N5R02 | 14.3 | 0.563 | 1.00 | 1.26 | 2.25 | 3.23 | 6.38 | 3.16 | SOMT050204SK | SM20-043-00 | TD 6P | PF-0012 |
| * QR0150060N5R02 | 15.0 | 0.591 | 2.37 | 3.43 | 6.57 | 3.16 | ||||||
| * QR0159064N5R02 | 15.9 | 0.626 | 2.50 | 3.62 | 6.77 | 3.16 | ||||||
| * QR0167067N5R02 | 16.7 | 0.658 | 2.63 | 3.78 | 6.93 | 3.16 | SOMT060204SK | TS 22052I/HG-P | TD 7P | PF-0012 | ||
| * QR0175070N5R02 | 17.5 | 0.689 | 2.75 | 3.98 | 7.13 | 3.16 | ||||||
| * QR0183073N5R02 | 18.3 | 0.721 | 2.87 | 3.98 | 7.13 | 3.16 | ||||||
| * QR0191076N5R02 | 19.1 | 0.750 | 3.00 | 4.13 | 7.28 | 3.16 | ||||||
| * QR0198079N5R02 | 19.8 | 0.781 | 3.13 | 4.37 | 7.52 | 3.16 | ||||||
| * QR0206082N5R02 | 20.6 | 0.813 | 3.25 | 4.53 | 7.68 | 3.16 | SOMT070306SK | TS 22052I/HG-P | TP 7P | PF-0012 | ||
| * QR0214086N5R02 | 21.4 | 0.843 | 1.25 | 1.77 | 3.37 | 4.69 | 7.83 | 3.16 | ||||
| * QR0222089N5R02 | 22.2 | 0.875 | 3.50 | 4.69 | 7.83 | 3.16 | ||||||
| * QR0230092N6R02 | 23.0 | 0.906 | 3.62 | 5.00 | 8.15 | 3.16 | ||||||
| * QR0238095N6R02 | 23.8 | 0.938 | 3.75 | 5.20 | 8.35 | 3.16 | SOMT08T306SK | SO 25065I | DS-T07S | PF-0013 | ||
| * QR0246098N6R02 | 24.6 | 0.969 | 3.87 | 5.39 | 8.54 | 3.16 | ||||||
| * QR0250100N5R02 | 25.0 | 0.984 | 3.94 | 5.39 | 8.54 | 3.16 | ||||||
| * QR0254102N6R02 | 25.4 | 1.000 | 4.00 | 5.55 | 8.70 | 3.16 | ||||||
| * QR0262105N6R02 | 26.2 | 1.031 | 4.13 | 5.55 | 8.70 | 3.16 | ||||||
| QR0270108N6R02 | 27.0 | 1.063 | 4.25 | 5.71 | 8.86 | 3.16 | ||||||
| QR0278111N6R02 | 27.8 | 1.094 | 1.77 | 4.38 | 5.91 | 9.06 | 3.16 | SOMT09T306SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0286114N6R02 | 28.6 | 1.125 | 4.50 | 6.06 | 9.21 | 3.16 | ||||||
| QR0294118N6R02 | 29.4 | 1.156 | 4.62 | 6.34 | 9.49 | 3.16 | ||||||
| QR0302120N6R02 | 30.2 | 1.187 | 4.75 | 6.34 | 9.49 | 3.16 | ||||||
| QR0310124N6R02 | 31.0 | 1.219 | 4.87 | 6.54 | 9.69 | 3.16 | ||||||
| QR0318127N6R02 | 31.8 | 1.250 | 5.00 | 6.69 | 9.84 | 3.16 | ||||||
| QR0325130N6R02 | 32.5 | 1.281 | 1.77 | 5.13 | 6.89 | 10.04 | 3.16 | SOMT11T308SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0333133N6R02 | 33.3 | 1.312 | 5.25 | 6.89 | 10.04 | 3.16 | ||||||
| QR0341136N6R02 | 34.1 | 1.343 | 5.37 | 7.05 | 10.20 | 3.16 | ||||||
| QR0349140N6R02 | 34.9 | 1.375 | 5.50 | 7.24 | 10.39 | 3.16 | ||||||
| QR0357143N6R02 | 35.7 | 1.406 | 5.62 | 7.44 | 10.59 | 3.16 | ||||||
| QR0365146N6R02 | 36.5 | 1.437 | 5.75 | 7.64 | 10.79 | 3.16 | ||||||
| QR0373149N6R02 | 37.3 | 1.468 | 5.87 | 7.64 | 10.79 | 3.16 | ||||||
| QR0381152N6R02 | 38.1 | 1.500 | 6.00 | 7.83 | 10.98 | 3.16 | ||||||
| QR0389156N6R02 | 38.9 | 1.531 | 1.25 | 2.16 | 6.13 | 7.99 | 11.14 | 3.16 | SOMT130408SK | SE02-82 | TD 15 | PF-0013 |
| QR0397159N6R02 | 39.7 | 1.562 | 6.25 | 8.19 | 11.34 | 3.16 | ||||||
| QR0405162N6R02 | 40.5 | 1.594 | 6.25 | 8.39 | 11.54 | 3.16 | ||||||
| QR0413165N6R02 | 41.3 | 1.625 | 6.50 | 8.39 | 11.54 | 3.16 | ||||||
| QR0428171N7R02 | 42.8 | 1.687 | 6.75 | 8.74 | 11.89 | 3.16 | ||||||
| QR0437175N7R02 | 43.7 | 1.719 | 1.50 | 2.36 | 6.87 | 8.90 | - | - | ||||
| QR0445178N7R02 | 44.5 | 1.750 | 7.00 | 9.13 | 12.28 | 3.16 | SOMT150510SK | SM50-113-20 | TD 20 | PF-0013 | ||
| QR0452181N7R02 | 45.2 | 1.781 | 7.13 | 9.13 | 12.28 | 3.16 | ||||||
| QR0460184N7R02 | 46.0 | 1.813 | 7.25 | 9.33 | 12.48 | 3.16 | ||||||
| QR0476190N7R02 | 47.6 | 1.875 | 7.50 | 9.69 | 12.83 | 3.16 | ||||||
| QR0492197N7R02 | 49.2 | 1.937 | 7.75 | 9.84 | 12.99 | 3.16 | ||||||
| QR0500200N7R02 | 50.0 | 1.969 | - | - | 7.87 | 10.04 | 13.19 | 3.16 | ||||
| QR0508203N7R02 | 50.8 | 2.000 | - | - | 8.00 | 10.24 | 13.39 | 3.16 |
* Стандартный хвостовик (R01) будет снят с производства и заменён на R02.
Латунные заглушки для СОЖ, PF-0012 и PF-0013, продаются отдельно.
