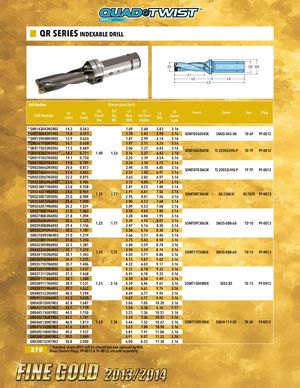

СЕРИЯ СМЕННЫХ СВЁРЛ QR
Корпуса 3xD
| Номер сверла | D1 (мм) | D1 (дюйм) | D2, хвостовик | D3, рис. | L1, макс. глуб. рез. | L2, вылет от держателя | L4, длина хвостовика | L3, общая длина | Пластина | Винт | Torx | Заглушка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * QR0143043N5R02 | 14.3 | 0.563 | 1.00 | 1.26 | 1.69 | 2.68 | 5.83 | 3.16 | SOMT050204SK | SM20-043-00 | TD 6P | PF-0012 |
| * QR0150045N5R02 | 15.0 | 0.591 | 1.78 | 2.83 | 5.98 | 3.16 | ||||||
| * QR0159048N5R02 | 15.9 | 0.626 | 1.87 | 2.99 | 6.14 | 3.16 | ||||||
| * QR0167050N5R02 | 16.7 | 0.658 | 1.97 | 3.11 | 6.26 | 3.16 | SOMT060204SK | TS 22052I/HG-P | TD 7P | PF-0012 | ||
| * QR0175053N5R02 | 17.5 | 0.689 | 2.06 | 3.27 | 6.42 | 3.16 | ||||||
| * QR0183055N5R02 | 18.3 | 0.721 | 2.16 | 3.27 | 6.42 | 3.16 | ||||||
| * QR0191057N5R02 | 19.1 | 0.750 | 2.25 | 3.39 | 6.54 | 3.16 | ||||||
| * QR0198059N5R02 | 19.8 | 0.781 | 2.34 | 3.58 | 6.73 | 3.16 | ||||||
| * QR0206062N5R02 | 20.6 | 0.813 | 2.44 | 3.70 | 6.85 | 3.16 | SOMT070306SK | TS 22052I/HG-P | TP 7P | PF-0012 | ||
| * QR0214064N5R02 | 21.4 | 0.843 | 1.25 | 1.77 | 2.53 | 3.82 | 6.97 | 3.16 | ||||
| * QR0222067N5R02 | 22.2 | 0.875 | 2.63 | 3.82 | 6.97 | 3.16 | ||||||
| * QR0230069N6R02 | 23.0 | 0.906 | 2.72 | 4.09 | 7.24 | 3.16 | ||||||
| * QR0238071N6R02 | 23.8 | 0.938 | 2.81 | 4.25 | 7.40 | 3.16 | SOMT08T306SK | SO 25065I | DS-T07S | PF-0013 | ||
| * QR0246074N6R02 | 24.6 | 0.969 | 2.91 | 4.41 | 7.56 | 3.16 | ||||||
| * QR0250075N5R02 | 25.0 | 0.984 | 2.95 | 4.41 | 7.56 | 3.16 | ||||||
| * QR0254076N6R02 | 25.4 | 1.000 | 3.00 | 4.53 | 7.68 | 3.16 | ||||||
| * QR0262079N6R02 | 26.2 | 1.031 | 3.09 | 4.53 | 7.68 | 3.16 | ||||||
| QR0270081N6R02 | 27.0 | 1.063 | 3.19 | 4.65 | 7.80 | 3.16 | ||||||
| QR0278083N6R02 | 27.8 | 1.094 | 1.77 | 3.28 | 4.80 | 7.95 | 3.16 | SOMT09T306SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0286086N6R02 | 28.6 | 1.125 | 3.38 | 4.92 | 8.07 | 3.16 | ||||||
| QR0294088N6R02 | 29.4 | 1.156 | 3.47 | 5.16 | 8.30 | 3.16 | ||||||
| QR0302090N6R02 | 30.2 | 1.187 | 3.56 | 5.16 | 8.30 | 3.16 | ||||||
| QR0310093N6R02 | 31.0 | 1.219 | 3.66 | 5.31 | 8.46 | 3.16 | ||||||
| QR0318095N6R02 | 31.8 | 1.250 | 3.75 | 5.43 | 8.58 | 3.16 | ||||||
| QR0325098N6R02 | 32.5 | 1.281 | 1.77 | 3.84 | 5.59 | 8.74 | 3.16 | SOMT11T308SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0333100N6R02 | 33.3 | 1.312 | 3.94 | 5.59 | 8.74 | 3.16 | ||||||
| QR0341102N6R02 | 34.1 | 1.343 | 4.03 | 5.71 | 8.86 | 3.16 | ||||||
| QR0349105N6R02 | 34.9 | 1.375 | 4.13 | 5.87 | 9.02 | 3.16 | ||||||
| QR0357107N6R02 | 35.7 | 1.406 | 4.22 | 6.02 | 9.17 | 3.16 | ||||||
| QR0365110N6R02 | 36.5 | 1.437 | 4.31 | 6.18 | 9.33 | 3.16 | ||||||
| QR0373112N6R02 | 37.3 | 1.468 | 4.41 | 6.18 | 9.33 | 3.16 | ||||||
| QR0381114N6R02 | 38.1 | 1.500 | 4.50 | 6.34 | 9.49 | 3.16 | ||||||
| QR0389117N6R02 | 38.9 | 1.531 | 1.25 | 2.16 | 4.59 | 6.46 | 9.61 | 3.16 | SOMT130408SK | SE02-82 | TD 15 | PF-0013 |
| QR0397119N6R02 | 39.7 | 1.562 | 4.69 | 6.61 | 9.76 | 3.16 | ||||||
| QR0405122N6R02 | 40.5 | 1.594 | 4.69 | 6.77 | 9.92 | 3.16 | ||||||
| QR0413124N6R02 | 41.3 | 1.625 | 4.87 | 6.77 | 9.92 | 3.16 | ||||||
| QR0428128N7R02 | 42.8 | 1.687 | 5.06 | 7.05 | 10.20 | 3.16 | ||||||
| QR0437131N7R02 | 43.7 | 1.719 | 1.50 | 2.36 | 5.16 | 7.17 | - | - | ||||
| QR0445134N7R02 | 44.5 | 1.750 | 5.25 | 7.36 | 10.51 | 3.16 | SOMT150510SK | SM50-113-20 | TD 20 | PF-0013 | ||
| QR0452136N7R02 | 45.2 | 1.781 | 5.34 | 7.36 | 10.51 | 3.16 | ||||||
| QR0460138N7R02 | 46.0 | 1.813 | 5.44 | 7.52 | 10.67 | 3.16 | ||||||
| QR0476143N7R02 | 47.6 | 1.875 | 5.63 | 7.80 | 10.94 | 3.16 | ||||||
| QR0492148N7R02 | 49.2 | 1.937 | 5.81 | 7.91 | 11.06 | 3.16 | ||||||
| QR0500150N7R02 | 50.0 | 1.969 | - | - | 5.91 | 8.07 | 11.22 | 3.16 | ||||
| QR0508152N7R02 | 50.8 | 2.000 | - | - | 6.00 | 8.23 | 11.38 | 3.16 |
* Стандартный хвостовик (R01) будет снят с производства и заменён на R02.
Латунные заглушки для СОЖ, PF-0012 и PF-0013, продаются отдельно.
