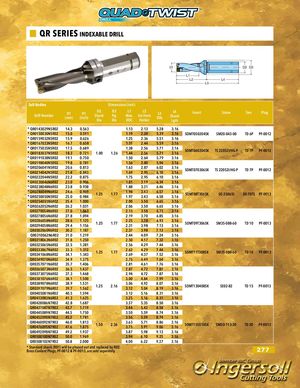

СЕРИЯ СМЕННЫХ СВЁРЛ QR
Корпуса 2xD
| Номер сверла | D1 (мм) | D1 (дюйм) | D2, хвостовик | D3, рис. | L1, макс. глуб. рез. | L2, вылет от держателя | L4, длина хвостовика | L3, общая длина | Пластина | Винт | Torx | Заглушка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * QR0143029N5R02 | 14.3 | 0.563 | 1.00 | 1.26 | 1.13 | 2.13 | 5.28 | 3.16 | SOMT050204SK | SM20-043-00 | TD 6P | PF-0012 |
| * QR0150030N5R02 | 15.0 | 0.591 | 1.19 | 2.24 | 5.39 | 3.16 | ||||||
| * QR0159032N5R02 | 15.9 | 0.626 | 1.25 | 2.36 | 5.51 | 3.16 | ||||||
| * QR0167033N5R02 | 16.7 | 0.658 | 1.31 | 2.44 | 5.59 | 3.16 | SOMT060204SK | TS 22052I/HG-P | TD 7P | PF-0012 | ||
| * QR0175035N5R02 | 17.5 | 0.689 | 1.38 | 2.56 | 5.71 | 3.16 | ||||||
| * QR0183037N5R02 | 18.3 | 0.721 | 1.44 | 2.56 | 5.71 | 3.16 | ||||||
| * QR0191038N5R02 | 19.1 | 0.750 | 1.50 | 2.64 | 5.79 | 3.16 | ||||||
| * QR0198040N5R02 | 19.8 | 0.781 | 1.56 | 2.80 | 5.94 | 3.16 | ||||||
| * QR0206041N5R02 | 20.6 | 0.813 | 1.63 | 2.87 | 6.02 | 3.16 | SOMT070306SK | TS 22052I/HG-P | TD 7P | PF-0012 | ||
| * QR0214042N5R02 | 21.4 | 0.843 | 1.25 | 1.77 | 1.69 | 2.95 | 6.10 | 3.16 | ||||
| * QR0222044N5R02 | 22.2 | 0.875 | 1.75 | 2.95 | 6.10 | 3.16 | ||||||
| * QR0230046N6R02 | 23.0 | 0.906 | 1.81 | 3.19 | 6.34 | 3.16 | ||||||
| * QR0238048N6R02 | 23.8 | 0.938 | 1.88 | 3.31 | 6.46 | 3.16 | SOMT08T306SK | SO 25065I | DS-T07S | PF-0013 | ||
| * QR0246049N6R02 | 24.6 | 0.969 | 1.94 | 3.43 | 6.57 | 3.16 | ||||||
| * QR0250050N5R02 | 25.0 | 0.984 | 1.97 | 3.43 | 6.58 | 3.16 | ||||||
| * QR0254051N6R02 | 25.4 | 1.000 | 2.00 | 3.50 | 6.65 | 3.16 | ||||||
| * QR0262052N6R02 | 26.2 | 1.031 | 2.06 | 3.50 | 6.65 | 3.16 | ||||||
| QR0270054N6R02 | 27.0 | 1.063 | 2.13 | 3.58 | 6.73 | 3.16 | ||||||
| QR0278056N6R02 | 27.8 | 1.094 | 1.77 | 2.19 | 3.70 | 6.85 | 3.16 | SOMT09T306SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0286058N6R02 | 28.6 | 1.125 | 2.25 | 3.78 | 6.93 | 3.16 | ||||||
| QR0294058N6R02 | 29.4 | 1.156 | 2.31 | 3.98 | 7.13 | 3.16 | ||||||
| QR0302060N6R02 | 30.2 | 1.187 | 2.37 | 3.98 | 7.13 | 3.16 | ||||||
| QR0310062N6R02 | 31.0 | 1.219 | 2.44 | 4.09 | 7.24 | 3.16 | ||||||
| QR0318063N6R02 | 31.8 | 1.250 | 2.50 | 4.17 | 7.32 | 3.16 | ||||||
| QR0325065N6R02 | 32.5 | 1.281 | 1.77 | 2.56 | 4.29 | 7.44 | 3.16 | SOMT11T308SK | SM35-088-60 | TD 10 | PF-0013 | |
| QR0333067N6R02 | 33.3 | 1.312 | 2.62 | 4.29 | 7.44 | 3.16 | ||||||
| QR0341068N6R02 | 34.1 | 1.343 | 2.69 | 4.37 | 7.52 | 3.16 | ||||||
| QR0349070N6R02 | 34.9 | 1.375 | 2.75 | 4.49 | 7.64 | 3.16 | ||||||
| QR0357071N6R02 | 35.7 | 1.406 | 2.81 | 4.61 | 7.76 | 3.16 | ||||||
| QR0365073N6R02 | 36.5 | 1.437 | 2.87 | 4.72 | 7.87 | 3.16 | ||||||
| QR0373075N6R02 | 37.3 | 1.468 | 2.94 | 4.72 | 7.87 | 3.16 | ||||||
| QR0381076N6R02 | 38.1 | 1.500 | 3.00 | 4.84 | 7.99 | 3.16 | ||||||
| QR0389078N6R02 | 38.9 | 1.531 | 1.25 | 2.16 | 3.06 | 4.92 | 8.07 | 3.16 | SOMT130408SK | SE02-82 | TD 15 | PF-0013 |
| QR0397079N6R02 | 39.7 | 1.562 | 3.12 | 5.04 | 8.19 | 3.16 | ||||||
| QR0405081N6R02 | 40.5 | 1.594 | 3.12 | 5.16 | 8.31 | 3.16 | ||||||
| QR0413083N6R02 | 41.3 | 1.625 | 3.25 | 5.16 | 8.31 | 3.16 | ||||||
| QR0428086N7R02 | 42.8 | 1.687 | 3.37 | 5.35 | 8.50 | 3.16 | ||||||
| QR0437087N7R02 | 43.7 | 1.719 | 3.44 | 5.43 | 8.58 | 3.16 | ||||||
| QR0445089N7R02 | 44.5 | 1.750 | 1.50 | 2.36 | 3.50 | 5.59 | 8.74 | 3.16 | SOMT150510SK | SM50-113-20 | TD 20 | PF-0013 |
| QR0452090N7R02 | 45.2 | 1.781 | 3.56 | 5.59 | 8.74 | 3.16 | ||||||
| QR0460092N7R02 | 46.0 | 1.813 | 3.63 | 5.71 | 8.86 | 3.16 | ||||||
| QR0476095N7R02 | 47.6 | 1.875 | 3.75 | 5.91 | 9.06 | 3.16 | ||||||
| QR0492098N7R02 | 49.2 | 1.937 | 3.87 | 5.98 | 9.13 | 3.16 | ||||||
| QR0500100N7R02 | 50.0 | 1.969 | 3.94 | 6.10 | 9.25 | 3.16 | ||||||
| QR0508102N7R02 | 50.8 | 2.000 | - | - | 4.00 | 6.22 | 9.37 | 3.16 |
* Стандартный хвостовик (R01) будет снят с производства и заменён на R02.
Латунные заглушки для СОЖ, PF-0012 и PF-0013, продаются отдельно.
