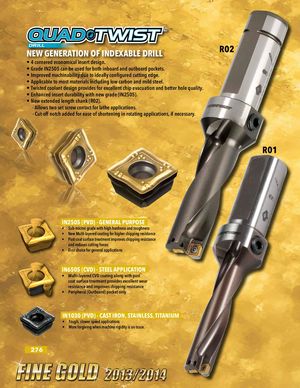

NEW GENERATION OF INDEXABLE DRILL R02 • 4 cornered economical insert design. • Grade IN2505 can be used for both inboard and outboard pockets. • Improved machinability due to ideally configured cutting edge. • Applicable to most materials including low carbon and mild steel. • Twisted coolant design provides for excellent chip evacuation and better hole quality. • Enhanced insert durability with new grade (IN2505). • New extended length shank (R02). - Allows two set screw contact for lathe applications. - Cut-off notch added for ease of shortening in rotating applications, if necessary. R01 IN2505 (PVD) - GENERAL PURPOSE • Sub-micron grade with high hardness and toughness • New Multi-layered coating for higher chipping resistance • Post-coat surface treatment improves chipping resistance and reduces cutting forces • First choice for general applications IN6505 (CVD) - STEEL APPLICATION • Multi-layered CVD coating along with post coat surface treatment provides excellent wear resistance and improves chipping resistance • Peripheral (Outboard) pocket only IN1030 (PVD) - CAST IRON, STAINLESS, TITANIUM • Tough, slower speed applications • More forgiving when machine rigidity is an issue. 276
