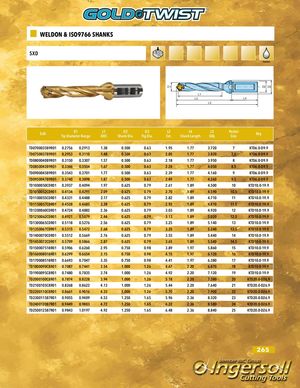

ХВОСТОВИКИ WELDON И ISO9766 — 5XD
Охлаждение.
| Код заказа | Диапазон диаметров наконечника, мин. | Диапазон диаметров наконечника, макс. | Глубина резания (DOC) | Диаметр хвостовика | Диаметр Fig | Вылет | Длина хвостовика | Общая длина (OAL) | Размер | Ключ гнезда |
|---|---|---|---|---|---|---|---|---|---|---|
| TD0700035B9R01 | 0.2756 | 0.2913 | 1.38 | 0.500 | 0.63 | 1.95 | 1.77 | 3.720 | 7 | KTD6.0-D9.9 |
| TD0750037B9R01 | 0.2953 | 0.3110 | 1.48 | 0.500 | 0.63 | 2.05 | 1.77 | 3.820 | 7.5 | KTD6.0-D9.9 |
| TD0800040B9R01 | 0.3150 | 0.3307 | 1.57 | 0.500 | 0.63 | 2.18 | 1.77 | 3.950 | 8 | KTD6.0-D9.9 |
| TD0850042B9R01 | 0.3346 | 0.3504 | 1.67 | 0.500 | 0.63 | 2.28 | 1.77 | 4.050 | 8.5 | KTD6.0-D9.9 |
| TD0900045B9R01 | 0.3543 | 0.3701 | 1.77 | 0.500 | 0.63 | 2.39 | 1.77 | 4.160 | 9 | KTD6.0-D9.9 |
| TD0950047B9R01 | 0.3740 | 0.3898 | 1.87 | 0.500 | 0.63 | 2.49 | 1.77 | 4.260 | 9.5 | KTD6.0-D9.9 |
| TD1000050C0R01 | 0.3937 | 0.4094 | 1.97 | 0.625 | 0.79 | 2.61 | 1.89 | 4.500 | 10 | KTD10.0-19.9 |
| TD1050052C0R01 | 0.4134 | 0.4291 | 2.09 | 0.625 | 0.79 | 2.70 | 1.89 | 4.590 | 10.5 | KTD10.0-19.9 |
| TD1100055C0R01 | 0.4331 | 0.4488 | 2.17 | 0.625 | 0.79 | 2.82 | 1.89 | 4.710 | 11 | KTD10.0-19.9 |
| TD1150057C0R01 | 0.4528 | 0.4685 | 2.28 | 0.625 | 0.79 | 2.92 | 1.89 | 4.810 | 11.5 | KTD10.0-19.9 |
| TD1200060C0R01 | 0.4724 | 0.4882 | 2.36 | 0.625 | 0.79 | 3.03 | 1.89 | 4.920 | 12 | KTD10.0-19.9 |
| TD1250062C0R01 | 0.4921 | 0.5079 | 2.44 | 0.625 | 0.79 | 3.13 | 1.89 | 5.020 | 12.5 | KTD10.0-19.9 |
| TD1300065C0R01 | 0.5118 | 0.5276 | 2.56 | 0.625 | 0.79 | 3.25 | 1.89 | 5.140 | 13 | KTD10.0-19.9 |
| TD1350067C0R01 | 0.5315 | 0.5472 | 2.68 | 0.625 | 0.79 | 3.35 | 1.89 | 5.240 | 13.5 | KTD10.0-19.9 |
| TD1400070C0R01 | 0.5512 | 0.5669 | 2.76 | 0.625 | 0.79 | 3.55 | 1.89 | 5.440 | 14 | KTD10.0-19.9 |
| TD1450072C0R01 | 0.5709 | 0.5866 | 2.87 | 0.625 | 0.79 | 3.65 | 1.89 | 5.540 | 14.5 | KTD10.0-19.9 |
| TD150007518R01 | 0.5906 | 0.6260 | 2.95 | 0.750 | 0.98 | 3.89 | 1.97 | 5.860 | 15 | KTD10.0-19.9 |
| TD160008018R01 | 0.6299 | 0.6654 | 3.15 | 0.750 | 0.98 | 4.15 | 1.97 | 6.120 | 16 | KTD10.0-19.9 |
| TD170008518R01 | 0.6693 | 0.7047 | 3.35 | 0.750 | 0.98 | 4.41 | 1.97 | 6.380 | 17 | KTD10.0-19.9 |
| TD1800090C8R01 | 0.7087 | 0.7441 | 3.54 | 1.000 | 1.26 | 4.67 | 2.20 | 6.870 | 18 | KTD10.0-19.9 |
| TD1900095C8R01 | 0.7480 | 0.7835 | 3.74 | 1.000 | 1.26 | 4.92 | 2.20 | 7.120 | 19 | KTD10.0-19.9 |
| TD2000100C8R01 | 0.7874 | 0.8228 | 3.94 | 1.000 | 1.26 | 5.18 | 2.20 | 7.380 | 20 | KTD20.0-D26.9 |
| TD2100105C8R01 | 0.8268 | 0.8622 | 4.13 | 1.000 | 1.26 | 5.44 | 2.20 | 7.640 | 21 | KTD20.0-D26.9 |
| TD2200110C8R01 | 0.8661 | 0.9016 | 4.33 | 1.000 | 1.26 | 5.70 | 2.20 | 7.900 | 22 | KTD20.0-D26.9 |
| TD2300115B7R01 | 0.9055 | 0.9409 | 4.53 | 1.250 | 1.65 | 5.96 | 2.36 | 8.320 | 23 | KTD20.0-D26.9 |
| TD2400120B7R01 | 0.9449 | 0.9803 | 4.72 | 1.250 | 1.65 | 6.22 | 2.36 | 8.580 | 24 | KTD20.0-D26.9 |
| TD2500125B7R01 | 0.9843 | 1.0197 | 4.92 | 1.250 | 1.65 | 6.48 | 2.36 | 8.840 | 25 | KTD20.0-D26.9 |
