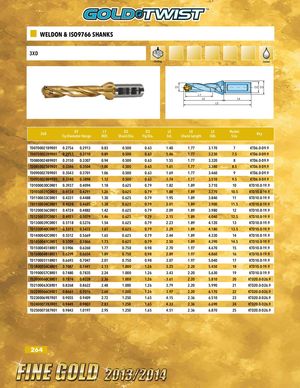

ХВОСТОВИКИ WELDON И ISO9766 — 3XD
Сверление. Охлаждение.
| Код заказа | Диапазон диаметров наконечника, мин. | Диапазон диаметров наконечника, макс. | Глубина резания (DOC) | Диаметр хвостовика | Диаметр Fig | Вылет | Длина хвостовика | Общая длина (OAL) | Размер | Ключ гнезда |
|---|---|---|---|---|---|---|---|---|---|---|
| TD0700021B9R01 | 0.2756 | 0.2913 | 0.83 | 0.500 | 0.63 | 1.40 | 1.77 | 3.170 | 7 | KTD6.0-D9.9 |
| TD0750022B9R01 | 0.2953 | 0.3110 | 0.89 | 0.500 | 0.63 | 1.46 | 1.77 | 3.230 | 7.5 | KTD6.0-D9.9 |
| TD0800024B9R01 | 0.3150 | 0.3307 | 0.94 | 0.500 | 0.63 | 1.55 | 1.77 | 3.320 | 8 | KTD6.0-D9.9 |
| TD0850025B9R01 | 0.3346 | 0.3504 | 1.00 | 0.500 | 0.63 | 1.61 | 1.77 | 3.380 | 8.5 | KTD6.0-D9.9 |
| TD0900027B9R01 | 0.3543 | 0.3701 | 1.06 | 0.500 | 0.63 | 1.69 | 1.77 | 3.460 | 9 | KTD6.0-D9.9 |
| TD0950028B9R01 | 0.3740 | 0.3898 | 1.12 | 0.500 | 0.63 | 1.74 | 1.77 | 3.510 | 9.5 | KTD6.0-D9.9 |
| TD1000030C0R01 | 0.3937 | 0.4094 | 1.18 | 0.625 | 0.79 | 1.82 | 1.89 | 3.710 | 10 | KTD10.0-19.9 |
| TD1050031C0R01 | 0.4134 | 0.4291 | 1.26 | 0.625 | 0.79 | 1.88 | 1.89 | 3.770 | 10.5 | KTD10.0-19.9 |
| TD1100033C0R01 | 0.4331 | 0.4488 | 1.30 | 0.625 | 0.79 | 1.95 | 1.89 | 3.840 | 11 | KTD10.0-19.9 |
| TD1150034C0R01 | 0.4528 | 0.4685 | 1.38 | 0.625 | 0.79 | 2.01 | 1.89 | 3.900 | 11.5 | KTD10.0-19.9 |
| TD1200036C0R01 | 0.4724 | 0.4882 | 1.42 | 0.625 | 0.79 | 2.09 | 1.89 | 3.980 | 12 | KTD10.0-19.9 |
| TD1250037C0R01 | 0.4921 | 0.5079 | 1.46 | 0.625 | 0.79 | 2.15 | 1.89 | 4.040 | 12.5 | KTD10.0-19.9 |
| TD1300039C0R01 | 0.5118 | 0.5276 | 1.54 | 0.625 | 0.79 | 2.23 | 1.89 | 4.120 | 13 | KTD10.0-19.9 |
| TD1350040C0R01 | 0.5315 | 0.5472 | 1.61 | 0.625 | 0.79 | 2.29 | 1.89 | 4.180 | 13.5 | KTD10.0-19.9 |
| TD1400042C0R01 | 0.5512 | 0.5669 | 1.65 | 0.625 | 0.79 | 2.44 | 1.89 | 4.330 | 14 | KTD10.0-19.9 |
| TD1450043C0R01 | 0.5709 | 0.5866 | 1.73 | 0.625 | 0.79 | 2.50 | 1.89 | 4.390 | 14.5 | KTD10.0-19.9 |
| TD150004518R01 | 0.5906 | 0.6260 | 1.77 | 0.750 | 0.98 | 2.70 | 1.97 | 4.670 | 15 | KTD10.0-19.9 |
| TD160004818R01 | 0.6299 | 0.6654 | 1.89 | 0.750 | 0.98 | 2.89 | 1.97 | 4.860 | 16 | KTD10.0-19.9 |
| TD170005118R01 | 0.6693 | 0.7047 | 2.01 | 0.750 | 0.98 | 3.07 | 1.97 | 5.040 | 17 | KTD10.0-19.9 |
| TD1800054C8R01 | 0.7087 | 0.7441 | 2.13 | 1.000 | 1.26 | 3.25 | 2.20 | 5.450 | 18 | KTD10.0-19.9 |
| TD1900057C8R01 | 0.7480 | 0.7835 | 2.24 | 1.000 | 1.26 | 3.43 | 2.20 | 5.630 | 19 | KTD10.0-19.9 |
| TD2000060C8R01 | 0.7874 | 0.8228 | 2.36 | 1.000 | 1.26 | 3.61 | 2.20 | 5.810 | 20 | KTD20.0-D26.9 |
| TD2100063C8R01 | 0.8268 | 0.8622 | 2.48 | 1.000 | 1.26 | 3.79 | 2.20 | 5.990 | 21 | KTD20.0-D26.9 |
| TD2200066C8R01 | 0.8661 | 0.9016 | 2.60 | 1.000 | 1.26 | 3.97 | 2.20 | 6.170 | 22 | KTD20.0-D26.9 |
| TD2300069B7R01 | 0.9055 | 0.9409 | 2.72 | 1.250 | 1.65 | 4.15 | 2.36 | 6.510 | 23 | KTD20.0-D26.9 |
| TD2400072B7R01 | 0.9449 | 0.9803 | 2.83 | 1.250 | 1.65 | 4.33 | 2.36 | 6.690 | 24 | KTD20.0-D26.9 |
| TD2500075B7R01 | 0.9843 | 1.0197 | 2.95 | 1.250 | 1.65 | 4.51 | 2.36 | 6.870 | 25 | KTD20.0-D26.9 |
