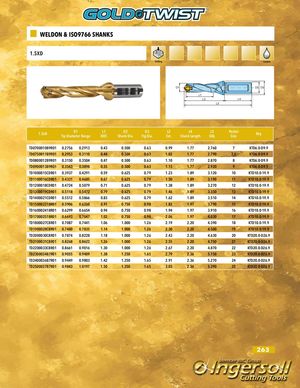

ХВОСТОВИКИ WELDON И ISO9766 — 1.5XD
Сверление. Охлаждение.
| Код заказа | Диапазон диаметров наконечника, мин. | Диапазон диаметров наконечника, макс. | Глубина резания (DOC) | Диаметр хвостовика | Диаметр Fig | Вылет | Длина хвостовика | Общая длина (OAL) | Размер | Ключ гнезда |
|---|---|---|---|---|---|---|---|---|---|---|
| TD0700010B9R01 | 0.2756 | 0.2913 | 0.43 | 0.500 | 0.63 | 0.99 | 1.77 | 2.760 | 7 | KTD6.0-D9.9 |
| TD0750011B9R01 | 0.2953 | 0.3110 | 0.44 | 0.500 | 0.63 | 1.02 | 1.77 | 2.790 | 7.5 | KTD6.0-D9.9 |
| TD0800012B9R01 | 0.3150 | 0.3504 | 0.47 | 0.500 | 0.63 | 1.10 | 1.77 | 2.870 | 8 | KTD6.0-D9.9 |
| TD0900013B9R01 | 0.3543 | 0.3898 | 0.55 | 0.500 | 0.63 | 1.15 | 1.77 | 2.920 | 9 | KTD6.0-D9.9 |
| TD1000015C0R01 | 0.3937 | 0.4291 | 0.59 | 0.625 | 0.79 | 1.23 | 1.89 | 3.120 | 10 | KTD10.0-19.9 |
| TD1100016C0R01 | 0.4331 | 0.4685 | 0.67 | 0.625 | 0.79 | 1.30 | 1.89 | 3.190 | 11 | KTD10.0-19.9 |
| TD1200018C0R01 | 0.4724 | 0.5079 | 0.71 | 0.625 | 0.79 | 1.38 | 1.89 | 3.270 | 12 | KTD10.0-19.9 |
| TD1300019C0R01 | 0.5118 | 0.5472 | 0.79 | 0.625 | 0.79 | 1.46 | 1.89 | 3.350 | 13 | KTD10.0-19.9 |
| TD1400021C0R01 | 0.5512 | 0.5866 | 0.83 | 0.625 | 0.79 | 1.62 | 1.89 | 3.510 | 14 | KTD10.0-19.9 |
| TD150002218R01 | 0.5906 | 0.6260 | 0.91 | 0.750 | 0.98 | 1.82 | 1.97 | 3.790 | 15 | KTD10.0-19.9 |
| TD160002418R01 | 0.6299 | 0.6654 | 0.94 | 0.750 | 0.98 | 1.94 | 1.97 | 3.910 | 16 | KTD10.0-19.9 |
| TD170002518R01 | 0.6693 | 0.7047 | 1.02 | 0.750 | 0.98 | 2.06 | 1.97 | 4.030 | 17 | KTD10.0-19.9 |
| TD1800027C8R01 | 0.7087 | 0.7441 | 1.06 | 1.000 | 1.26 | 2.19 | 2.20 | 4.390 | 18 | KTD10.0-19.9 |
| TD1900028C8R01 | 0.7480 | 0.7835 | 1.14 | 1.000 | 1.26 | 2.30 | 2.20 | 4.500 | 19 | KTD10.0-19.9 |
| TD2000030C8R01 | 0.7874 | 0.8228 | 1.18 | 1.000 | 1.26 | 2.43 | 2.20 | 4.630 | 20 | KTD20.0-D26.9 |
| TD2100031C8R01 | 0.8268 | 0.8622 | 1.26 | 1.000 | 1.26 | 2.55 | 2.20 | 4.750 | 21 | KTD20.0-D26.9 |
| TD2200033C8R01 | 0.8661 | 0.9016 | 1.30 | 1.000 | 1.26 | 2.67 | 2.20 | 4.870 | 22 | KTD20.0-D26.9 |
| TD2300034B7R01 | 0.9055 | 0.9409 | 1.38 | 1.250 | 1.65 | 2.79 | 2.36 | 5.150 | 23 | KTD20.0-D26.9 |
| TD2400036B7R01 | 0.9449 | 0.9803 | 1.42 | 1.250 | 1.65 | 2.91 | 2.36 | 5.270 | 24 | KTD20.0-D26.9 |
| TD2500037B7R01 | 0.9843 | 1.0197 | 1.50 | 1.250 | 1.65 | 3.03 | 2.36 | 5.390 | 25 | KTD20.0-D26.9 |
