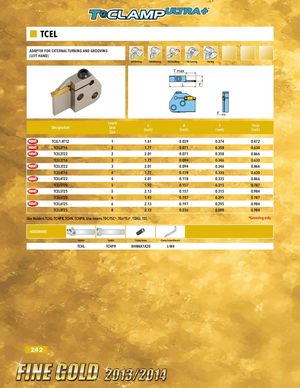

TCEL ADAPTER FOR EXTERNAL TURNING AND GROOVING (LEFT HAND) OD Turning OD Grooving OD Profiling OD Turning Parting T max D max L F D min F Designation InsertSeatSize L(inch) A(inch) F(inch) Tmax(inch) TCEL1.4T12 1 1.61 0.039 0.374 0.472 TCEL2T16 2 1.77 0.071 0.358 0.630 TCEL2T22 2 2.01 0.071 0.358 0.866 TCEL3T16 3 1.77 0.094 0.346 0.630 TCEL3T22 3 2.01 0.094 0.346 0.866 TCEL4T16 4 1.77 0.118 0.335 0.630 TCEL4T22 4 2.01 0.118 0.335 0.866 TCEL5T20 5 1.93 0.157 0.315 0.787 TCEL5T25 5 2.13 0.157 0.315 0.984 TCEL6T20 6 1.93 0.197 0.295 0.787 TCEL6T25 6 2.13 0.197 0.295 0.984 TCEL8T25 8 2.13 0.236 0.000 0.984 Use Holders TCHL, TCHPR, TCHN, TCHPN. Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT. *Grooving only HARDWARE Holder Holder Clamp Screw Clamp Screw Wrench TCHL TCHPR BHM6X1X20 L-W4 242
