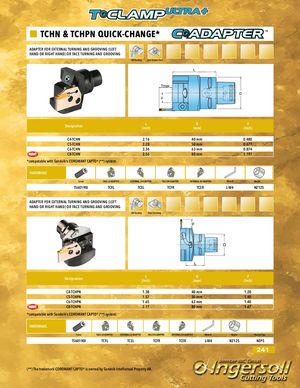

TCHN & TCHPN QUICK-CHANGE* ADAPTER FOR EXTERNAL TURNING AND GROOVING (LEFT HAND OR RIGHT HAND) OR FACE TURNING AND GROOVING OD Turning Face Groove Turn L Tmax D F Designation L D F(inch)(mm)(inch) C4-TCHN 2.16 40 mm 0.480 C5-TCHN 2.28 50 mm 0.677 C6-TCHN 2.36 63 mm 0.874 C8-TCHN 2.56 80 mm 1.197 *compatable with Sandvik‘s COROMANT CAPTO® (**) system. HARDWARE Screw FACE LH ADAPTER EXTERNAL LH ADAPTER FACE RH ADAPTER EXTERNAL RH ADAPTER Wrench Nozzle TS60190I TCFL TCEL TCFR TCER L-W4 NZ125 ADAPTER FOR EXTERNAL TURNING AND GROOVING (LEFT HAND OR RIGHT HAND) OR FACE TURNING AND GROOVING OD Turning Face Grooving F D L Designation L D F(inch)(mm)(inch) C4-TCHPN 1.38 40 mm 1.20 C5-TCHPN 1.57 50 mm 1.40 C6-TCHPN 1.65 63 mm 1.40 C8-TCHPN 2.17 80 mm 1.67 *compatable with Sandvik‘s COROMANT CAPTO® (**) system. HARDWARE Screw FACE LH ADAPTER EXTERNAL LH ADAPTER FACE RH ADAPTER EXTERNAL RH ADAPTER Wrench Nozzle Nozzle Pipe TS60190I TCFL TCEL TCFR TCER L-W4 NZ125 NZP5 241 (**) The trademark COROMANT CAPTO® is owned by Sandvik Intellectual Property AB.
