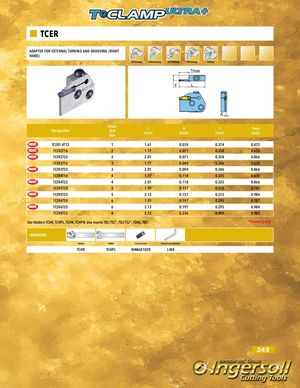

TCER ADAPTER FOR EXTERNAL TURNING AND GROOVING (RIGHT HAND) OD Turning OD Grooving OD Profiling OD Turning Parting Tmax F L A Designation InsertSeatSize L(inch) A(inch) F(inch) Tmax(inch) TCER1.4T12 1 1.61 0.039 0.374 0.472 TCER2T16 2 1.77 0.071 0.358 0.630 TCER2T22 2 2.01 0.071 0.358 0.866 TCER3T16 3 1.77 0.094 0.346 0.630 TCER3T22 3 2.01 0.094 0.346 0.866 TCER4T16 4 1.77 0.118 0.335 0.630 TCER4T22 4 2.01 0.118 0.335 0.866 TCER5T20 5 1.93 0.157 0.315 0.787 TCER5T25 5 2.13 0.157 0.315 0.984 TCER6T20 6 1.93 0.197 0.295 0.787 TCER6T25 6 2.13 0.197 0.295 0.984 TCER8T25 8 2.13 0.236 0.000 0.984 Use Holders TCHR, TCHPL, TCHN, TCHPN. Use inserts TDC/TSC*, TDJ/TSJ*, TDXU, TDT. *Grooving only HARDWARE Holder Holder Clamp Screw Clamp Screw Wrench TCHR TCHPL BHM6X1X20 L-W4 243
