Общий каталог Ingersoll 2013 - 2014

Применение: SCREW / NUT — общее машиностроение.

Designation	Thread Type	Hand	IC (inch)	TPI	L (inch)	R (inch)	X (inch)	Y (inch)	Grade
16ERB8UN	EXTERNAL	RIGHT	0.375	8	0.630	0.016	0.047	0.063	TT9030
16ERB9UN	EXTERNAL	RIGHT	0.375	9	0.630	0.014	0.047	0.067	TT9030
16ERB10UN	EXTERNAL	RIGHT	0.375	10	0.630	0.013	0.043	0.059	TT9030
16ERB11UN	EXTERNAL	RIGHT	0.375	11	0.630	0.011	0.043	0.059	TT9030
16ERB12UN	EXTERNAL	RIGHT	0.375	12	0.630	0.010	0.043	0.055	TT9030
16ERB13UN	EXTERNAL	RIGHT	0.375	13	0.630	0.009	0.039	0.051	TT9030
16ERB14UN	EXTERNAL	RIGHT	0.375	14	0.630	0.009	0.039	0.047	TT9030
16ERB16UN	EXTERNAL	RIGHT	0.375	16	0.630	0.007	0.035	0.043	TT9030
16ERB18UN	EXTERNAL	RIGHT	0.375	18	0.630	0.006	0.031	0.039	TT9030
16ERB20UN	EXTERNAL	RIGHT	0.375	20	0.630	0.006	0.031	0.035	TT9030
16ERB24UN	EXTERNAL	RIGHT	0.375	24	0.630	0.005	0.028	0.031	TT9030
16IRB8UN	INTERNAL	RIGHT	0.375	8	0.630	0.007	0.043	0.059	TT9030
16IRB9UN	INTERNAL	RIGHT	0.375	9	0.630	0.007	0.047	0.067	TT9030
16IRB10UN	INTERNAL	RIGHT	0.375	10	0.630	0.006	0.043	0.059	TT9030
16IRB12UN	INTERNAL	RIGHT	0.375	12	0.630	0.005	0.043	0.055	TT9030
16IRB14UN	INTERNAL	RIGHT	0.375	14	0.630	0.004	0.035	0.047	TT9030
16IRB16UN	INTERNAL	RIGHT	0.375	16	0.630	0.004	0.035	0.043	TT9030
16IRB18UN	INTERNAL	RIGHT	0.375	18	0.630	0.003	0.031	0.039	TT9030
16IRB20UN	INTERNAL	RIGHT	0.375	20	0.630	0.002	0.031	0.035	TT9030
16IRB24UN	INTERNAL	RIGHT	0.375	24	0.630	0.002	0.028	0.031	TT9030

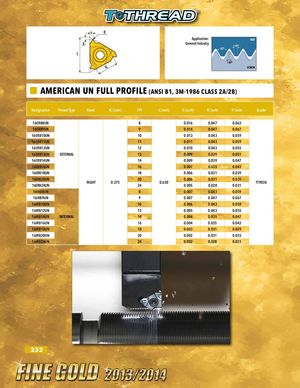

Общий каталог Ingersoll 2013 - 2014 - страница 232
