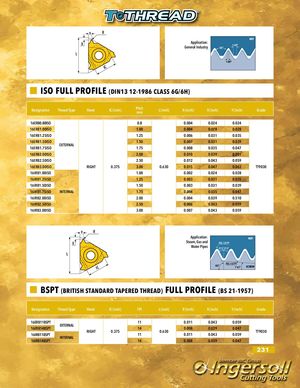

Общий каталог Ingersoll 2013 - 2014 - страница 231
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2016 - 2017
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
ISO FULL PROFILE (DIN13 12-1986 CLASS 6G/6H)
Применение: SCREW / NUT — общее машиностроение.
| Designation | Thread Type | Hand | IC (inch) | Pitch mm | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|
| 16ERB0.80ISO | EXTERNAL | RIGHT | 0.375 | 0.8 | 0.630 | 0.004 | 0.024 | 0.024 | TT9030 |
| 16ERB1.00ISO | EXTERNAL | RIGHT | 0.375 | 1.00 | 0.630 | 0.004 | 0.028 | 0.028 | TT9030 |
| 16ERB1.25ISO | EXTERNAL | RIGHT | 0.375 | 1.25 | 0.630 | 0.006 | 0.031 | 0.035 | TT9030 |
| 16ERB1.50ISO | EXTERNAL | RIGHT | 0.375 | 1.50 | 0.630 | 0.007 | 0.031 | 0.039 | TT9030 |
| 16ERB1.75ISO | EXTERNAL | RIGHT | 0.375 | 1.75 | 0.630 | 0.008 | 0.035 | 0.047 | TT9030 |
| 16ERB2.00ISO | EXTERNAL | RIGHT | 0.375 | 2.00 | 0.630 | 0.010 | 0.039 | 0.051 | TT9030 |
| 16ERB2.50ISO | EXTERNAL | RIGHT | 0.375 | 2.50 | 0.630 | 0.012 | 0.043 | 0.059 | TT9030 |
| 16ERB3.00ISO | EXTERNAL | RIGHT | 0.375 | 3.00 | 0.630 | 0.015 | 0.047 | 0.063 | TT9030 |
| 16IRB1.00ISO | INTERNAL | RIGHT | 0.375 | 1.00 | 0.630 | 0.002 | 0.024 | 0.028 | TT9030 |
| 16IRB1.25ISO | INTERNAL | RIGHT | 0.375 | 1.25 | 0.630 | 0.003 | 0.031 | 0.035 | TT9030 |
| 16IRB1.50ISO | INTERNAL | RIGHT | 0.375 | 1.50 | 0.630 | 0.003 | 0.031 | 0.039 | TT9030 |
| 16IRB1.75ISO | INTERNAL | RIGHT | 0.375 | 1.75 | 0.630 | 0.004 | 0.035 | 0.047 | TT9030 |
| 16IRB2.00ISO | INTERNAL | RIGHT | 0.375 | 2.00 | 0.630 | 0.004 | 0.039 | 0.510 | TT9030 |
| 16IRB2.50ISO | INTERNAL | RIGHT | 0.375 | 2.50 | 0.630 | 0.006 | 0.043 | 0.059 | TT9030 |
| 16IRB3.00ISO | INTERNAL | RIGHT | 0.375 | 3.00 | 0.630 | 0.007 | 0.043 | 0.059 | TT9030 |
BSPT (BRITISH STANDARD TAPERED THREAD) FULL PROFILE (BS 21-1957)
Применение: SCREW / NUT — паровые, газовые и водопроводные трубы.
| Designation | Thread Type | Hand | IC (inch) | TPI | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|
| 16ERB11BSPT | EXTERNAL | RIGHT | 0.375 | 11 | 0.630 | 0.011 | 0.043 | 0.059 | TT9030 |
| 16ERB14BSPT | EXTERNAL | RIGHT | 0.375 | 14 | 0.630 | 0.008 | 0.039 | 0.047 | TT9030 |
| 16IRB11BSPT | INTERNAL | RIGHT | 0.375 | 11 | 0.630 | 0.011 | 0.043 | 0.059 | TT9030 |
| 16IRB14BSPT | INTERNAL | RIGHT | 0.375 | 14 | 0.630 | 0.008 | 0.039 | 0.047 | TT9030 |
