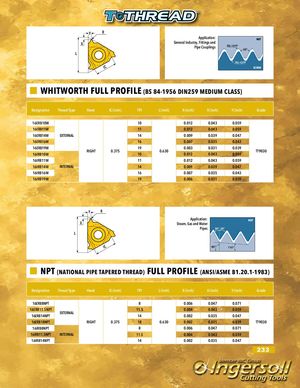

WHITWORTH FULL PROFILE (BS 84-1956 DIN259 MEDIUM CLASS)
Применение: SCREW / NUT — общее машиностроение, фитинги и трубные муфты.
| Designation | Thread Type | Hand | IC (inch) | TPI | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|
| 16ERB10W | EXTERNAL | RIGHT | 0.375 | 10 | 0.630 | 0.012 | 0.043 | 0.059 | TT9030 |
| 16ERB11W | EXTERNAL | RIGHT | 0.375 | 11 | 0.630 | 0.012 | 0.043 | 0.059 | TT9030 |
| 16ERB14W | EXTERNAL | RIGHT | 0.375 | 14 | 0.630 | 0.009 | 0.039 | 0.047 | TT9030 |
| 16ERB16W | EXTERNAL | RIGHT | 0.375 | 16 | 0.630 | 0.007 | 0.035 | 0.043 | TT9030 |
| 16ERB19W | EXTERNAL | RIGHT | 0.375 | 19 | 0.630 | 0.003 | 0.031 | 0.039 | TT9030 |
| 16IRB10W | INTERNAL | RIGHT | 0.375 | 10 | 0.630 | 0.012 | 0.043 | 0.059 | TT9030 |
| 16IRB11W | INTERNAL | RIGHT | 0.375 | 11 | 0.630 | 0.012 | 0.043 | 0.059 | TT9030 |
| 16IRB14W | INTERNAL | RIGHT | 0.375 | 14 | 0.630 | 0.009 | 0.039 | 0.047 | TT9030 |
| 16IRB16W | INTERNAL | RIGHT | 0.375 | 16 | 0.630 | 0.007 | 0.035 | 0.043 | TT9030 |
| 16IRB19W | INTERNAL | RIGHT | 0.375 | 19 | 0.630 | 0.006 | 0.031 | 0.039 | TT9030 |
NPT (NATIONAL PIPE TAPERED THREAD) FULL PROFILE (ANSI/ASME B1.20.1-1983)
Применение: SCREW / NUT — паровые, газовые и водопроводные трубы.
| Designation | Thread Type | Hand | IC (inch) | TPI | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|
| 16ERB8NPT | EXTERNAL | RIGHT | 0.375 | 8 | 0.630 | 0.006 | 0.047 | 0.071 | TT9030 |
| 16ERB11.5NPT | EXTERNAL | RIGHT | 0.375 | 11.5 | 0.630 | 0.004 | 0.043 | 0.059 | TT9030 |
| 16ERB14NPT | EXTERNAL | RIGHT | 0.375 | 14 | 0.630 | 0.002 | 0.035 | 0.047 | TT9030 |
| 16ERB18NPT | EXTERNAL | RIGHT | 0.375 | 18 | 0.630 | 0.002 | 0.031 | 0.039 | TT9030 |
| 16IRB8NPT | INTERNAL | RIGHT | 0.375 | 8 | 0.630 | 0.006 | 0.047 | 0.071 | TT9030 |
| 16IRB11.5NPT | INTERNAL | RIGHT | 0.375 | 11.5 | 0.630 | 0.004 | 0.043 | 0.059 | TT9030 |
| 16IRB14NPT | INTERNAL | RIGHT | 0.375 | 14 | 0.630 | 0.002 | 0.035 | 0.047 | TT9030 |
