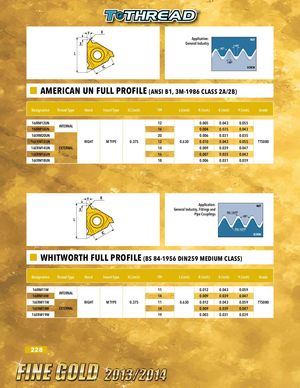

AMERICAN UN FULL PROFILE (ANSI B1, 3M-1986 CLASS 2A/2B)
Применение: SCREW / NUT — общее машиностроение.
| Designation | Thread Type | Hand | Insert Type | IC (inch) | TPI | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|
| 16IRM12UN | INTERNAL | RIGHT | M TYPE | 0.375 | 12 | 0.630 | 0.005 | 0.043 | 0.055 | TT5080 |
| 16IRM16UN | INTERNAL | RIGHT | M TYPE | 0.375 | 16 | 0.630 | 0.004 | 0.035 | 0.043 | TT5080 |
| 16ERM20UN | EXTERNAL | RIGHT | M TYPE | 0.375 | 20 | 0.630 | 0.006 | 0.031 | 0.035 | TT5080 |
| 16ERM12UN | EXTERNAL | RIGHT | M TYPE | 0.375 | 12 | 0.630 | 0.010 | 0.043 | 0.055 | TT5080 |
| 16ERM14UN | EXTERNAL | RIGHT | M TYPE | 0.375 | 14 | 0.630 | 0.009 | 0.039 | 0.047 | TT5080 |
| 16ERM16UN | EXTERNAL | RIGHT | M TYPE | 0.375 | 16 | 0.630 | 0.007 | 0.035 | 0.043 | TT5080 |
| 16ERM18UN | EXTERNAL | RIGHT | M TYPE | 0.375 | 18 | 0.630 | 0.006 | 0.031 | 0.039 | TT5080 |
WHITWORTH FULL PROFILE (BS 84-1956 DIN259 MEDIUM CLASS)
Применение: SCREW / NUT — общее машиностроение, фитинги и трубные муфты.
| Designation | Thread Type | Hand | Insert Type | IC (inch) | TPI | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|
| 16IRM11W | INTERNAL | RIGHT | M TYPE | 0.375 | 11 | 0.630 | 0.012 | 0.043 | 0.059 | TT5080 |
| 16IRM14W | INTERNAL | RIGHT | M TYPE | 0.375 | 14 | 0.630 | 0.009 | 0.039 | 0.047 | TT5080 |
| 16ERM11W | EXTERNAL | RIGHT | M TYPE | 0.375 | 11 | 0.630 | 0.012 | 0.043 | 0.059 | TT5080 |
| 16ERM14W | EXTERNAL | RIGHT | M TYPE | 0.375 | 14 | 0.630 | 0.009 | 0.039 | 0.047 | TT5080 |
| 16ERM19W | EXTERNAL | RIGHT | M TYPE | 0.375 | 19 | 0.630 | 0.003 | 0.031 | 0.039 | TT5080 |
