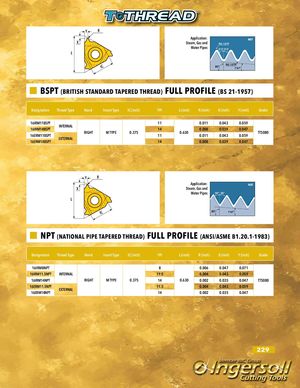

Общий каталог Ingersoll 2013 - 2014 - страница 229
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2016 - 2017
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
BSPT (BRITISH STANDARD TAPERED THREAD) FULL PROFILE (BS 21-1957)
Применение: SCREW / NUT — паровые, газовые и водопроводные трубы.
| Designation | Thread Type | Hand | Insert Type | IC (inch) | TPI | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|
| 16IRM11BSPT | INTERNAL | RIGHT | M TYPE | 0.375 | 11 | 0.630 | 0.011 | 0.043 | 0.059 | TT5080 |
| 16IRM14BSPT | INTERNAL | RIGHT | M TYPE | 0.375 | 14 | 0.630 | 0.008 | 0.039 | 0.047 | TT5080 |
| 16ERM11BSPT | EXTERNAL | RIGHT | M TYPE | 0.375 | 11 | 0.630 | 0.011 | 0.043 | 0.059 | TT5080 |
| 16ERM14BSPT | EXTERNAL | RIGHT | M TYPE | 0.375 | 14 | 0.630 | 0.008 | 0.039 | 0.047 | TT5080 |
NPT (NATIONAL PIPE TAPERED THREAD) FULL PROFILE (ANSI/ASME B1.20.1-1983)
Применение: SCREW / NUT — паровые, газовые и водопроводные трубы.
| Designation | Thread Type | Hand | Insert Type | IC (inch) | TPI | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|
| 16IRM8NPT | INTERNAL | RIGHT | M TYPE | 0.375 | 8 | 0.630 | 0.006 | 0.047 | 0.071 | TT5080 |
| 16IRM11.5NPT | INTERNAL | RIGHT | M TYPE | 0.375 | 11.5 | 0.630 | 0.004 | 0.043 | 0.059 | TT5080 |
| 16IRM14NPT | INTERNAL | RIGHT | M TYPE | 0.375 | 14 | 0.630 | 0.002 | 0.035 | 0.047 | TT5080 |
| 16ERM11.5NPT | EXTERNAL | RIGHT | M TYPE | 0.375 | 11.5 | 0.630 | 0.004 | 0.043 | 0.059 | TT5080 |
| 16ERM14NPT | EXTERNAL | RIGHT | M TYPE | 0.375 | 14 | 0.630 | 0.002 | 0.035 | 0.047 | TT5080 |
