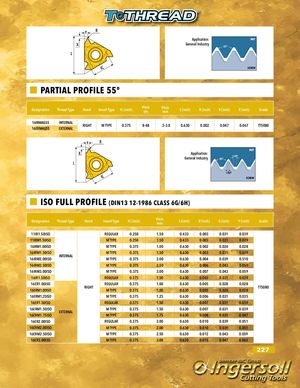

Общий каталог Ingersoll 2013 - 2014 - страница 227
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2016 - 2017
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
PARTIAL PROFILE 55º
Применение: SCREW / NUT — общее машиностроение.
| Designation | Thread Type | Hand | Insert Type | IC (inch) | TPI | Pitch mm | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16IRMAG55 | INTERNAL | RIGHT | M TYPE | 0.375 | 8-48 | .5-3.0 | 0.630 | 0.002 | 0.047 | 0.067 | TT5080 |
| 16ERMAG55 | EXTERNAL | RIGHT | M TYPE | 0.375 | 8-48 | .5-3.0 | 0.630 | 0.002 | 0.047 | 0.067 | TT5080 |
ISO FULL PROFILE (DIN13 12-1986 CLASS 6G/6H)
Применение: SCREW / NUT — общее машиностроение.
| Designation | Thread Type | Hand | Insert Type | IC (inch) | Pitch mm | L (inch) | R (inch) | X (inch) | Y (inch) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|
| 11IR1.50ISO | INTERNAL | RIGHT | REGULAR | 0.250 | 1.50 | 0.433 | 0.003 | 0.031 | 0.039 | TT5080 |
| 11IRM1.50ISO | INTERNAL | RIGHT | M TYPE | 0.250 | 1.50 | 0.433 | 0.003 | 0.031 | 0.039 | TT5080 |
| 16IRM1.00ISO | INTERNAL | RIGHT | M TYPE | 0.375 | 1.00 | 0.630 | 0.002 | 0.024 | 0.028 | TT5080 |
| 16IRM1.50ISO | INTERNAL | RIGHT | M TYPE | 0.375 | 1.50 | 0.630 | 0.003 | 0.031 | 0.039 | TT5080 |
| 16IRM2.00ISO | INTERNAL | RIGHT | M TYPE | 0.375 | 2.00 | 0.630 | 0.004 | 0.039 | 0.510 | TT5080 |
| 16IRM2.50ISO | INTERNAL | RIGHT | M TYPE | 0.375 | 2.50 | 0.630 | 0.006 | 0.043 | 0.059 | TT5080 |
| 16IRM3.00ISO | INTERNAL | RIGHT | M TYPE | 0.375 | 3.00 | 0.630 | 0.007 | 0.043 | 0.059 | TT5080 |
| 16IR1.50ISO | INTERNAL | RIGHT | REGULAR | 0.375 | 1.50 | 0.630 | 0.003 | 0.031 | 0.039 | TT5080 |
| 16ER1.00ISO | EXTERNAL | RIGHT | REGULAR | 0.375 | 1.00 | 0.630 | 0.005 | 0.028 | 0.028 | TT5080 |
| 16ERM1.00ISO | EXTERNAL | RIGHT | M TYPE | 0.375 | 1.00 | 0.630 | 0.005 | 0.028 | 0.028 | TT5080 |
| 16ERM1.25ISO | EXTERNAL | RIGHT | M TYPE | 0.375 | 1.25 | 0.630 | 0.006 | 0.031 | 0.035 | TT5080 |
| 16ER1.50ISO | EXTERNAL | RIGHT | REGULAR | 0.375 | 1.50 | 0.630 | 0.007 | 0.031 | 0.039 | TT5080 |
| 16ERM1.50ISO | EXTERNAL | RIGHT | M TYPE | 0.375 | 1.50 | 0.630 | 0.007 | 0.031 | 0.039 | TT5080 |
| 16ERM1.75ISO | EXTERNAL | RIGHT | M TYPE | 0.375 | 1.75 | 0.630 | 0.008 | 0.035 | 0.047 | TT5080 |
| 16ER2.00ISO | EXTERNAL | RIGHT | REGULAR | 0.375 | 2.00 | 0.630 | 0.010 | 0.039 | 0.051 | TT5080 |
| 16ERM2.00ISO | EXTERNAL | RIGHT | M TYPE | 0.375 | 2.00 | 0.630 | 0.010 | 0.039 | 0.051 | TT5080 |
| 16ERM2.50ISO | EXTERNAL | RIGHT | M TYPE | 0.375 | 2.50 | 0.630 | 0.012 | 0.043 | 0.059 | TT5080 |
| 16ER3.00ISO | EXTERNAL | RIGHT | M TYPE | 0.375 | 3.00 | 0.630 | 0.015 | 0.047 | 0.063 | TT5080 |
