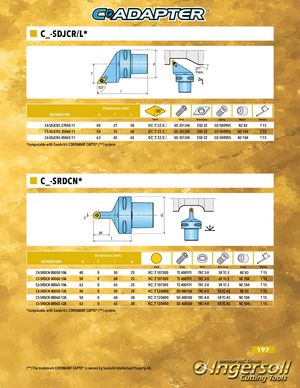

C_-SDJCR/L* d 27° f max. 93° l Dimensions (mm) DESIGNATION d f l Insert Shim Shim Screw Spring Nozzle Wrench C4-SDJCR/L 27050-11 40 27 50 DC T 32.5 SO 35124I SSD 32 SO 50090S NZ 83 T 15 C5-SDJCR/L 35060-11 50 35 60 DC T 32.5 SO 35124I SSD 32 SO 50090S NZ 104 T 15 C6-SDJCR/L 45065-11 63 45 65 DC T 32.5 SO 35124I SSD 32 SO 50090S NZ 104 T 15 *compatable with Sandvik’s COROMANT CAPTO* (**) system. C_-SRDCN* f d ar l Dimensions (mm) DESIGNATION d f l ar Insert Screw Shim Shim Screw Nozzle Wrench C4-SRDCN 00050-10A 40 0 50 25 RC T 10T300 TS 40097I TRC 3-0 SR TC-3 NZ 83 T 15 C5-SRDCN 00060-10A 50 0 60 25 RC T 10T300 TS 40097I TRC 3-0 SR TC-3 NZ 104 T 15 C6-SRDCN 00065-10A 63 0 65 25 RC T 10T300 TS 40097I TRC 3-0 SR TC-3 NZ 104 T 15 C4-SRDCN 00050-12A 40 0 50 28 RC T 120400 SO 40050I TRC 4-0 SR TC-4S NZ 83 T 15 C5-SRDCN 00060-12A 50 0 60 28 RC T 120400 SO 40050I TRC 4-0 SR TC-4S NZ 104 T 15 C6-SRDCN 00065-12A 63 0 65 28 RC T 120400 SO 40050I TRC 4-0 SR TC-4S NZ 104 T 15 *compatable with Sandvik’s COROMANT CAPTO* (**) system. 197 (**) The trademark COROMANT CAPTO® is owned by Sandvik Intellectual Property AB.
