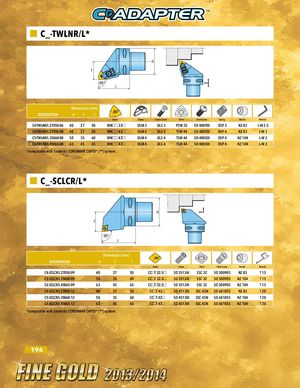

C_-TWLNR/L* d f 95° l Dimensions (mm) DESIGNATION d f l Insert Clamp Clamp Screw Shim Shim Screw Spring Nozzle Wrench C4-TWLNR/L 27050-06 40 27 50 WN 33 DLM 3 DLS 3 PSW 32 SO 40090I DSP 3 NZ 83 L-W 2.5 C4-TWLNR/L 27050-08 40 27 50 WN 43 DLM 4 DLS 4 TSW 44 SO 40050I DSP 4 NZ 83 L-W 3 C5-TWLNR/L 35060-08 50 35 60 WN 43 DLM 4 DLS 4 TSW 44 SO 40050I DSP 4 NZ 104 L-W 3 C6-TWLNR/L 45065-08 63 45 65 WN 43 DLM 4 DLS 4 TSW 44 SO 40050I DSP 4 NZ 104 L-W 3 *compatable with Sandvik’s COROMANT CAPTO* (**) system. C_-SCLCR/L* d f 95° l Dimensions (mm) DESIGNATION d f l Insert Screw Shim Shim Screw Nozzle Wrench C4-SCLCR/L 27050-09 40 27 50 CC T 32.5 SO 35124I SSC 32 SO 50090S NZ 83 T 15 C5-SCLCR/L 35060-09 50 35 60 CC T 32.5 SO 35124I SSC 32 SO 50090S NZ 104 T 15 C6-SCLCR/L 45065-09 63 45 65 CC T 32.5 SO 35124I SSC 32 SO 50090S NZ 104 T 15 C4-SCLCR/L 27050-12 40 27 50 CC T 43 SO 45130I SSC 43N SO 60105S NZ 83 T 20 C5-SCLCR/L 35060-12 50 35 60 CC T 43 SO 45130I SSC 43N SO 60105S NZ 104 T 20 C6-SCLCR/L 45065-12 63 45 65 CC T 43 SO 45130I SSC 43N SO 60105S NZ 104 T 20 *compatable with Sandvik’s COROMANT CAPTO* (**) system. 196
