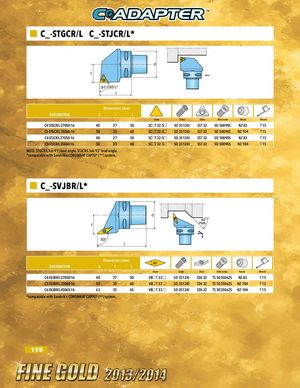

C_-STGCR/L C_-STJCR/L* d f 91° (93°)* l Dimensions (mm) DESIGNATION d f l Insert Screw Shim Shim Screw Nozzle Wrench C4-STGCR/L 27050-16 40 27 50 SC T 32.5 SO 35124I SST 32 SO 50090S NZ 83 T 15 C5-STGCR/L 35060-16 50 35 60 SC T 32.5 SO 35124I SST 32 SO 50090S NZ 104 T 15 C4-STJCR/L 27050-16 40 27 50 SC T 32.5 SO 35124I SST 32 SO 50090S NZ 83 T 15 C5-STJCR/L 35060-16 50 35 60 SC T 32.5 SO 35124I SST 32 SO 50090S NZ 104 T 15 NOTE: STGCR/L has 91° lead angle. STJCR/L has 93° lead angle. *compatable with Sandvik’s COROMANT CAPTO* (**) system. C_-SVJBR/L* d f m4a4x°. 93° l Dimensions (mm) DESIGNATION d f l Insert Screw Shim Shim Screw Nozzle Wrench C4-SVJBR/L 27050-16 40 27 50 VB T 33 SO 35124I SSV 32 TS 5035062S NZ 83 T 15 C5-SVJBR/L 35060-16 50 35 60 VB T 33 SO 35124I SSV 32 TS 5035062S NZ 104 T 15 C6-SVJBR/L 45065-16 63 35 65 VB T 33 SO 35124I SSV 32 TS 5035062S NZ 104 T 15 *compatable with Sandvik’s COROMANT CAPTO* (**) system. 198
