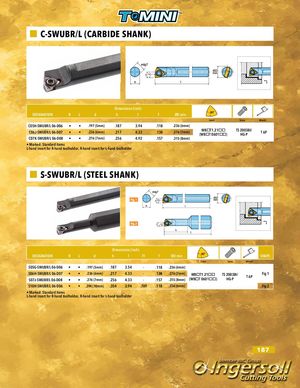

Общий каталог Ingersoll 2013 - 2014 - страница 187

C-SWUBR/L (CARBIDE SHANK) 93° Dimensions (inch) DESIGNATION R L d h l f ØD min Insert Screw Wrench C05H-SWUBR/L 06-D06 • • .197 (5mm) .187 3.94 .118 .236 (6mm) C06J-SWUBR/L 06-D07 • • .236 (6mm) .217 4.33 .138 .276 (7mm) WBoT1.21oo(WBoT 0601oo) TS 20038I/HG-P T 6P C07K-SWUBR/L 06-D08 • • .276 (7mm) .256 4.92 .157 .315 (8mm) • Marked: Standard items L-hand insert for R-hand toolholder, R-hand insert for L-hand toolholder S-SWUBR/L (STEEL SHANK) Fig. 1 93° Fig. 2 93° Dimensions (inch) DESIGNATION R L d h l l1 f ØD min SHAPE Insert Screw Wrench S05G-SWUBR/L 06-D06 • • .197 (5mm) .187 3.54 - .118 .236 (6mm) S06H-SWUBR/L 06-D07 • • .236 (6mm) .217 4.33S07J-SWUBR/L 06-D08••.276 (7mm).2564.33--.138 .276 (7mm) WBoT1.21oo TS 20038I/.157.315 (8mm)(WBoT 0601oo)HG-PT 6PFig 1 S10H-SWUBR/L 06-D06 • • .394 (10mm) .354 3.94 .709 .118 .236 (6mm) Fig 2 • Marked: Standard items L-hand insert for R-hand toolholder, R-hand insert for L-hand toolholder 187
