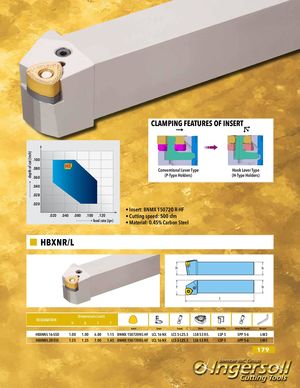

depth of cut (inch) CLAMPING FEATURES OF INSERT .100 .080 HF Conventional Lever Type Hook Lever Type .060 (P-Type Holders) (H-Type Holders) .040 .028 .020 • Insert: BNMX 150720 R-HF .020 .040 .080 .100 .120 • Cutting speed: 500 sfm feed rate (ipr) • Material: 0.45% Carbon Steel HBXNR/L h h f b l Dimensions (inch) HARDDWESAIRGENATION h b l f Insert Lever Screw Shim Shim Pin Shim Pin Punch Wrench HBXNR/L 16-55D 1.00 1.00 6.00 1.15 BNMX 150720R/L-HF LCL 16-NX LCS 5-L25.5 LSB 53 R/L LSP 5 SPP 5-6 L-W3 HBXNR/L 20-55E 1.25 1.25 7.00 1.45 BNMX 150720R/L-HF LCL 16-NX LCS 5-L25.5 LSB 53 R/L LSP 5 SPP 5-6 L-W3 179
