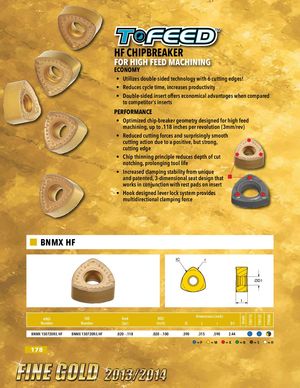

Общий каталог Ingersoll 2013 - 2014 - страница 178

HF CHIPBREAKER FOR HIGH FEED MACHINING ECONOMY • Utilizes double-sided technology with 6 cutting edges! • Reduces cycle time, increases productivity • Double-sided insert offers economical advantages when compared to competitor’s inserts PERFORMANCE • Optimized chip-breaker geometry designed for high feed machining, up to .118 inches per revolution (3mm/rev) • Reduced cutting forces and surprisingly smooth cutting action due to a positive, but strong, cutting edge • Chip thinning principle reduces depth of cut notching, prolonging tool life • Increased clamping stability from unique and patented, 3-dimensional seat design that works in conjunction with rest pads on insert • Hook designed lever lock system provides multidirectional clamping force BNMX HF IC r ØD1 t ANSI ISO feed DOC Dimensions (inch) Number Number (ipr) (inch) IC t r D1 BNMX 150720R/L HF BNMX 150720R/L HF .020 - .118 .020 - .100 .590 .315 .590 2.44 =P =M =K =N =S =H 178 Grade TT8115 TT8125 TT9080
