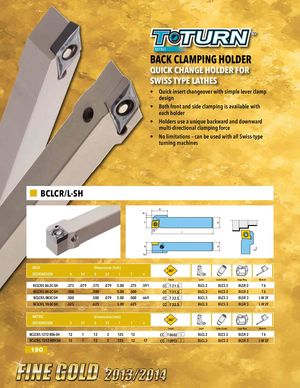

MINI BACK CLAMPING HOLDER QUICK CHANGE HOLDER FOR SWISS TYPE LATHES • Quick insert changeover with simple lever clamp design • Both front and side clamping is available with each holder • Holders use a unique backward and downward multi-directional clamping force • No limitations – can be used with all Swiss-type turning machines BCLCR/L-SH e b1 f b 95˚ l h h h1 INCH Dimensions (inch) DESIGNATION h h1 b b1 l f e Insert Lever Lever Screw Snap Ring Wrench BCLCR/L 06-2C-SH .375 .079 .375 .079 5.00 .375 .591 CC T 21.5 BLCL 2 BLCS 2 BLSR 2 T6 BCLCR/L 08-2C-SH .500 .500 5.00 .500 CC T 21.5 BLCL 2 BLCS 2 BLSR 2 T6 BCLCR/L 083C-SH .500 .500 .079 5.00 .500 .669 CC T 32.5 BLCL 3 BLCS 3 BLSR 3 L-W 2F BCLCR/L 10-3C-SH .625 .625 5.00 .625 CC T 32.5 BLCL 3 BLCS 3 BLSR 3 L-W 2F METRIC Dimensions (mm) DESIGNATION h h1 b b1 l f e Insert Lever Lever Screw Snap Ring Wrench BCLCR/L 1212 K06-SH 12 1 12 2 125 12 CC T 0602 BLCL 2 BLCS 2 BLSR 2 T6 BCLCR/L 1212 K09-SH 12 1 12 2 125 12 17 CC T 09T3 BLCL 3 BLCS 3 BLSR 3 L-W 2F 180
