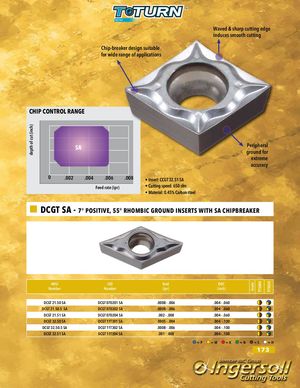

depth of cut (inch) Grade TT5080 TT9020 MINI Waved & sharp cutting edge induces smooth cutting Chip-breaker design suitable for wide range of applications CHIP CONTROL RANGE SA Peripheral ground for extreme accuracy 0 .002 .004 .006 .008 • Insert: CCGT 32.51 SA Feed rate (ipr) • Cutting speed: 650 sfm • Material: 0.45% Carbon steel DCGT SA - 7° POSITIVE, 55° RHOMBIC GROUND INSERTS WITH SA CHIPBREAKER ANSI ISO feed DOC Number Number (ipr) (inch) DCGT 21.50 SA DCGT 070201 SA .0008 - .006 .004 - .060 DCGT 21.50.5 SA DCGT 070202 SA .0008 - .006 .004 - .060 DCGT 21.51 SA DCGT 070204 SA .002 - .008 .004 - .060 DCGT 32.50 SA DCGT 11T301 SA .0005 - .004 .004 - .100 DCGT 32.50.5 SA DCGT 11T302 SA .0008 - .006 .004 - .100 DCGT 32.51 SA DCGT 11T304 SA .001 - .008 .004 - .100 =P =M =K =N =S =H 173
