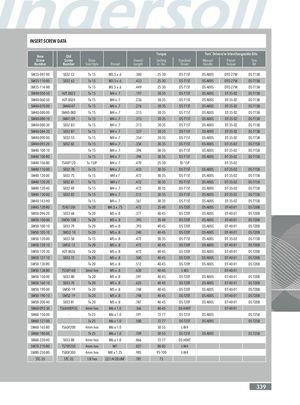

Данные по винтам для пластин
| Новый номер винта | Старый номер винта | Тип/размер привода | Резьба | Общая длина | Момент затяжки, дюйм-фунты | Стандартная отвертка | Ручная рукоятка | Преднастроенный момент | Бита Torx |
|---|---|---|---|---|---|---|---|---|---|
| SM35-097-00 | SE02-C3 | Tx-15 | M3.5 x .6 | .380 | 25-30 | DS-T15T | DS-A00S | DTQ-27W | DS-T15B |
| SM35-110-00 | SE02-63 | Tx-15 | M3.5 x .6 | .433 | 25-30 | DS-T15T | DS-A00S | DTQ-27W | DS-T15B |
| SM35-114-H0 | Tx-15 | M3.5 x .6 | .449 | 25-30 | DS-T15T | DS-A00S | DTQ-27W | DS-T15B | |
| SM40-050-50 | HZT.0023 | Tx-15 | M4 x .7 | .197 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-060-50 | HZT.0024 | Tx-15 | M4 x .7 | .236 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-070-00 | SM40-07 | Tx-15 | M4 x .7 | .276 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-080-00 | SM40-08D | Tx-15 | M4 x .7 | .315 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-080-10 | SM41-09 | Tx-15 | M4 x .7 | .315 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-080-30 | SE02-B3 | Tx-15 | M4 x .7 | .315 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-084-20 | SE02-B7 | Tx-15 | M4 x .7 | .337 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-090-00 | SE02-55 | Tx-15 | M4 x .7 | .354 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-093-20 | SE02-82 | Tx-15 | M4 x .7 | .354 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-100-10 | Tx-15 | M4 x .7 | .394 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B | |
| SM40-100-R0 | Tx-15 | M4 x .7 | .394 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B | |
| SM40-106-B0 | TS40F120 | Tx-15IP | M4 x .7 | .470 | 25-30 | TD-15P | DT-35-02 | ||
| SM40-110-00 | SE02-78 | Tx-15 | M4 x .7 | .433 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-120-00 | SE02-75 | Tx-15 | M4 x 7 | .472 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-120-20 | SE02-81 | Tx-15 | M4 x 7 | .472 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-120-40 | SE02-A9 | Tx-15 | M4 x .7 | .472 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-130-00 | SE02-83 | Tx-15 | M4 x .7 | .512 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM40-143-H0 | Tx-15 | M4 x .7 | .561 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B | |
| SM45-120-R0 | TS45120I | Tx-20 | M4.5 x .75 | .472 | 35-40 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-096-20 | SE03-68 | Tx-20 | M5 x .8 | .377 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-100-00 | SM50-10B | Tx-20 | M5 x .8 | .393 | 35-40 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-100-10 | SE03-79 | Tx-20 | M5 x .8 | .393 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-105-10 | SM52-10 | Tx-20 | M5 x .8 | .240 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-120-00 | SE03-58 | Tx-15 | M5 x .8 | .472 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SM50-120-10 | SM52-12 | Tx-20 | M5 x .8 | .472 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-120-30 | HZT.0026 | Tx-20 | M5 x .8 | .472 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-127-10 | SE03-72 | Tx-20 | M5 x .8 | .500 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-130-R0 | Tx-20 | M5 x .8 | .512 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B | |
| SM50-138-B0 | TS50F160 | 3mm hex | M5 x .8 | .630 | 40-45 | L-W3 | DT-40-01 | ||
| SM50-150-40 | SE03-80 | Tx-20 | M5 x .8 | .591 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-160-10 | SE03-70 | Tx-20 | M5 x .8 | .625 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-190-00 | SM50-19 | Tx-20 | M5 x .8 | .748 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-190-10 | SM52-19 | Tx-20 | M5 x .8 | .748 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM50-200-40 | SE03-81 | Tx-20 | M5 x .8 | .787 | 40-45 | DS-T20T | DS-A00S | DT-40-01 | DS-T20B |
| SM60-093-S0 | TS6040093S | 4mm hex | M6 x 1.0 | .366 | 40-45 | DS-H40T | DT-40-01 | ||
| SM60-150-00 | - | Tx-25 | M6 x 1.0 | .591 | 72-77 | DS-T25T | DS-A00S | DS-T25B | |
| SM60-127-00 | Tx-25 | M6 x 1.0 | .500 | 72-77 | DS-T25T | DS-A00S | DS-T25B | ||
| SM60-165-B0 | TS60F200 | 4mm hex | M6 x 1.0 | 50-55 | L-W4 | ||||
| SM60-180-00 | Tx-25 | M6 x 1.0 | .709 | 50-55 | DS-T25T | DS-A00S | DS-T25B | ||
| SM60-220-40 | SE03-88 | 4mm hex | M6 x 1.0 | .866 | 72-77 | DS-H04T | |||
| SM70-210-B0 | TS70F250 | 4mm hex | M7 | .827 | 80-85 | L-W4 | |||
| SM80-250-B0 | TS80F300 | 4mm hex | M8 x 1.25 | .985 | 95-100 | L-W4 | |||
| STC-35 | STC-35 | 1/8 hex | (2) 1/4-28 UNF | .781 | 75 |
