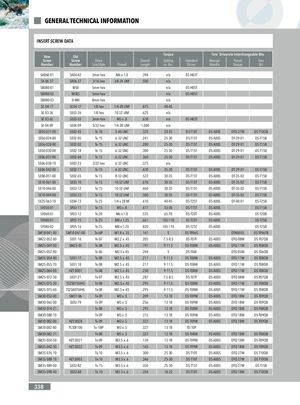

Общая техническая информация
Данные по винтам для пластин
| Новый номер винта | Старый номер винта | Тип/размер привода | Резьба | Общая длина | Момент затяжки, дюйм-фунты | Стандартная отвертка | Ручная рукоятка | Преднастроенный момент | Бита Torx |
|---|---|---|---|---|---|---|---|---|---|
| SA060-01 | SA04-42 | 3mm hex | M6 x 1.0 | .394 | n/a | DS-H03T | |||
| SA-06-37 | SA06-37 | 3/16 hex | 3/8-24 UNF | .500 | n/a | ||||
| SB080-01 | WS8 | 5mm hex | n/a | DS-H05T | |||||
| SB080-02 | WS8S | 5mm hex | n/a | DS-H05T | |||||
| SB080-03 | D-M8 | 8mm hex | n/a | ||||||
| SC-04-17 | SC04-17 | 1/8 hex | 1/4-28 UNF | .875 | 40-45 | ||||
| SE-03-26 | SE03-26 | 1/8 hex | 10-32 UNF | .625 | n/a | ||||
| SE-03-65 | SE03-65 | 3mm hex | M5 x .8 | .630 | n/a | DS-H03T | |||
| SE-04-09 | SE04-09 | 5/32 hex | 1/4-28 UNF | 1.000 | n/a | ||||
| SE05-031-00 | SE02-45 | Tx-10 | 5-40 UNC | .322 | 20-25 | DS-T10T | DS-A00S | DTQ-27W | DS-T10QB |
| SE06-024-00 | SE02-05 | Tx-15 | 6-32 UNC | .241 | 25-30 | DS-T15T | DS-A00S | DT-29-01 | DS-T15B |
| SE06-028-00 | SE02-02 | Tx-15 | 6-32 UNC | .280 | 25-30 | DS-T15T | DS-A00S | DT-29-01 | DS-T15B |
| SE06-030-00 | SE02-18 | Tx-15 | 6-32 UNC | .300 | 25-30 | DS-T15T | DS-A00S | DT-29-01 | DS-T15B |
| SE06-037-00 | SE02-04 | Tx-15 | 6-32 UNC | .360 | 25-30 | DS-T15T | DS-A00S | DT-29-01 | DS-T15B |
| SE06-038-10 | SE02-23 | 3/32 hex | 6-32 UNC | .375 | n/a | ||||
| SE06-042-00 | SE02-11 | Tx-15 | 6-32 UNC | .430 | 25-30 | DS-T15T | DS-A00S | DT-29-01 | DS-T15B |
| SE08-051-00 | SE02-65 | Tx-15 | 8-32 UNC | .522 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SE10-061-00 | SE03-10 | Tx-15 | 10-32 UNF | .610 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SE10-046-00 | SE03-12 | Tx-15 | 10-32 UNF | .460 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SE10-049-00 | SE03-23 | Tx-15 | 10-32 UNF | .500 | 30-35 | DS-T15T | DS-A00S | DT-35-02 | DS-T15B |
| SE25-063-10 | SE04-13 | Tx-25 | 1/4 x 28 NF | .610 | 40-45 | DS-T25T | DS-A00S | DT-40-01 | DS-T25B |
| SF050-01 | SF03-11 | Tx-15 | M5 x .8 | .417 | 53-58 | DS-T15T | DS-A00S | DS-T15B | |
| SF060-01 | SF03-12 | Tx-20 | M6 x 1.0 | .535 | 65-70 | DS-T20T | DS-A00S | DS-T20B | |
| SF080-01 | SF05-15 | Tx-25 | M8 x 1.25 | .661 | 105-110 | DS-T25T | DS-A00S | DS-T25B | |
| SF080-02 | SF05-16 | Tx-25 | M8 x 1.25 | .820 | 105-110 | DS-T25T | DS-A00S | DS-T25B | |
| SM18-041-00 | SM18-041-00 | Tx-6IP | M1.8 x .35 | .161 | 5 | DS-TP06S | DTN005S | DS-TP06TB | |
| SM22-052-00 | SE01-16 | Tx-07 | M2.2 x .45 | .205 | 7.5-8.5 | DS-T07F | DS-A00S | DTQ-08W | DS-T07QB |
| SM25-049-00 | SM25-05 | Tx-08 | M2.5 x .45 | .191 | 9-11.5 | DS-T08W | DS-A00S | DTQ-11W | DS-T08QB |
| SM25-052-80 | Tx-06 | M2.5 x 45 | .204 | 5 | DS-T06F | DTQ-05W | DS-T06QB | ||
| SM25-054-00 | SE01-17 | Tx-08 | M2.5 x .45 | .211 | 9-11.5 | DS-T08W | DS-A00S | DTQ-11W | DS-T08QB |
| SM25-055-10 | SE01-18 | Tx-08 | M2.5 x .45 | .217 | 9-11.5 | DS-T08W | DS-A00S | DTQ-11W | DS-T08QB |
| SM25-064-00 | HZT.0001 | Tx-08 | M2.5 x .45 | .250 | 9-11.5 | DS-T08W | DS-A00S | DTQ-11W | DS-T08QB |
| SM25-072-30 | SE01-21 | Tx-07 | M2.5 x .45 | .287 | 7.5-8.5 | DS-T07F | DS-A00S | DTQ-08W | DS-T07QB |
| SM25-075-20 | TS25075I/HG | Tx-08 | M2.5 x .45 | .295 | 9-11.5 | DS-T08W | DS-A00S | DTQ-11W | DS-T08QB |
| SM25-075-60 | TS25A075I/HG | Tx-08 | M2.5 x .45 | .295 | 9-11.5 | DS-T08W | DS-A00S | DTQ-11W | DS-T08QB |
| SM30-053-00 | SM31-06 | Tx-09 | M3 x .5 | .209 | 13-18 | DS-T09W | DS-A00S | DTQ-18W | DS-T09QB |
| SM30-065-00 | SE02-79 | Tx-09 | M3 x .5 | .256 | 13-18 | DS-T09W | DS-A00S | DTQ-18W | DS-T09QB |
| SM30-074-21 | Tx-08 | M3 x .5 | .293 | 13-18 | DS-T08W | DS-A00S | DTQ-18W | DS-T08QB | |
| SM30-080-10 | Tx-09 | M3 x .5 | .315 | 13-18 | DS-T09W | DS-A00S | DTQ-18W | DS-T09QB | |
| SM30-082-00 | HZT.0028 | Tx-09 | M3 x .5 | .323 | 13-18 | DS-T09W | DS-A00S | DTQ-18W | DS-T09QB |
| SM30-082-B0 | TS30F100 | Tx-10IP | M3 x .5 | .327 | 13-18 | TD-10P | |||
| SM30-082-21 | Tx-08 | M3 x .5 | .323 | 13-18 | DS-T08W | DS-A00S | DTQ-18W | DS-T08QB | |
| SM35-034-50 | HZT.0021 | Tx-09 | M3.5 x .6 | .134 | 13-18 | DS-T09W | DS-A00S | DTQ-18W | DS-T09QB |
| SM35-042-50 | HZT.0022 | Tx-09 | M3.5 x .6 | .165 | 13-18 | DS-T09W | DS-A00S | DTQ-18W | DS-T09QB |
| SM35-076-10 | Tx-10 | M3.5 x .6 | .300 | 25-30 | DS-T10T | DS-A00S | DTQ-27W | DS-T10QB | |
| SM35-088-10 | HZT.0003 | Tx-10 | M3.5 x .6 | .346 | 25-30 | DS-T10T | DS-A00S | DTQ-27W | DS-T10QB |
| SM35-089-00 | SE02-B2 | Tx-15 | M3.5 x .6 | .350 | 25-30 | DS-T15T | DS-A00S | DTQ-27W | DS-T15B |
| SM35-090-40 | SE02-A8 | Tx-10 | M3.5 x .6 | .354 | 18-22 | DS-T10T | DS-A00S | DTQ-18W | DS-T10QB |
