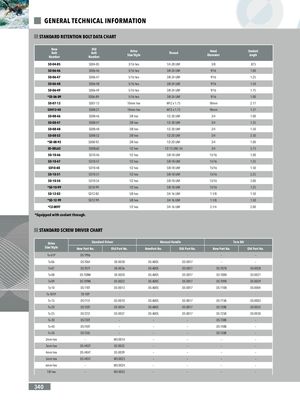

Общая техническая информация
Таблица данных стандартных стяжных болтов
| Новый номер болта | Старый номер болта | Тип/размер привода | Резьба | Диаметр головки | Стандартная длина |
|---|---|---|---|---|---|
| SD-04-85 | SD04-85 | 3/16 hex | 1/4-28 UNF | 3/8 | .875 |
| SD-06-46 | SD06-46 | 5/16 hex | 3/8-24 UNF | 9/16 | 1.00 |
| SD-06-47 | SD06-47 | 5/16 hex | 3/8-24 UNF | 9/16 | 1.25 |
| SD-06-48 | SD06-48 | 5/16 hex | 3/8-24 UNF | 9/16 | 1.50 |
| SD-06-49 | SD06-49 | 5/16 hex | 3/8-24 UNF | 9/16 | 1.75 |
| *SD-06-89 | SD06-89- | 5/16 hex | 3/8-24 UNF | 9/16 | 1.00 |
| SD-07-13 | SD07-13 | 10mm hex | M12 x 1.75 | 18mm | 2.17 |
| SD012-40 | SD08-21 | 10mm hex | M12 x 1.75 | 18mm | 1.57 |
| SD-08-46 | SD08-46 | 3/8 hex | 1/2-20 UNF | 3/4 | 1.00 |
| SD-08-47 | SD08-47 | 3/8 hex | 1/2-20 UNF | 3/4 | 1.25 |
| SD-08-48 | SD08-48 | 3/8 hex | 1/2-20 UNF | 3/4 | 1.50 |
| SD-08-52 | SD08-52 | 3/8 hex | 1/2-20 UNF | 3/4 | 2.50 |
| *SD-08-92 | SD08-92- | 3/8 hex | 1/2-20 UNF | 3/4 | 1.00 |
| SD-08LA2 | SD08LA2 | 1/2 hex | 1/2-13 UNC-LH | 3/4 | 5.75 |
| SD-10-46 | SD10-46 | 1/2 hex | 5/8-18 UNF | 15/16 | 1.00 |
| SD-10-47 | SD10-47 | 1/2 hex | 5/8-18 UNF | 15/16 | 1.25 |
| SD10-48 | SD10-48 | 1/2 hex | 5/8-18 UNF | 15/16 | 1.50 |
| SD-10-51 | SD10-51 | 1/2 hex | 5/8-18 UNF | 15/16 | 2.25 |
| SD-10-54 | SD10-54 | 1/2 hex | 5/8-18 UNF | 15/16 | 3.00 |
| *SD-10-99 | SD10-99- | 1/2 hex | 5/8-18 UNF | 15/16 | 1.25 |
| SD-12-82 | SD12-82- | 5/8 hex | 3/4-16 UNF | 1-1/8 | 1.50 |
| *SD-12-99 | SD12-99- | 5/8 hex | 3/4-16 UNF | 1-1/8 | 1.50 |
| *CZ-0097 | 1/2 hex | 3/4-16 UNF | 2-1/4 | 2.00 |
*С подводом СОЖ через инструмент.
Таблица стандартных отверток
| Тип/размер привода | Стандартная отвертка, новый номер | Стандартная отвертка, старый номер | Ручная рукоятка, новый номер | Ручная рукоятка, старый номер | Бита Torx, новый номер | Бита Torx, старый номер |
|---|---|---|---|---|---|---|
| Tx-61P | DS-TP06 | - | - | - | – | – |
| Tx-06 | DS-T06F | DS-0038 | DS-A00S | DS-0017 | – | – |
| Tx-07 | DS-T07F | DS-0036 | DS-A00S | DS-0017 | DS-T07B | DS-0028 |
| Tx-08 | DS-T08W | DS-0020 | DS-A00S | DS-0017 | DS-T08B | DS-0021 |
| Tx-09 | DS-T09W | DS-0022 | DS-A00S | DS-0017 | DS-T09B | DS-0029 |
| Tx-10 | DS-T10T | DS-0013 | DS-A00S | DS-0017 | DS-T10B | DS-0004 |
| Tx-101P | TD-10P | - | - | - | - | - |
| Tx-15 | DS-T15T | DS-0010 | DS-A00S | DS-0017 | DS-T15B | DS-0003 |
| Tx-20 | DS-T20T | DS-0034 | DS-A00S | DS-0017 | DS-T20B | DS-0035 |
| Tx-25 | DS-T25T | DS-0037 | DS-A00S | DS-0017 | DS-T25B | DS-0030 |
| Tx-30 | DS-T30T | – | – | – | DS-T30B | – |
| Tx-40 | DS-T40T | – | – | – | DS-T40B | – |
| Tx-50 | DS-T50L | – | – | – | DS-T50B | – |
| 2mm hex | – | WS-0014 | – | – | – | – |
| 3mm hex | DS-H03T | DS-0033 | – | – | – | – |
| 4mm hex | DS-H04T | DS-0039 | – | – | – | – |
| 5mm hex | DS-H05T | WS-0023 | – | – | – | – |
| 6mm hex | – | WS-0024 | – | – | – | – |
| 1/8 hex | – | WS-0022 | – | – | – | – |
