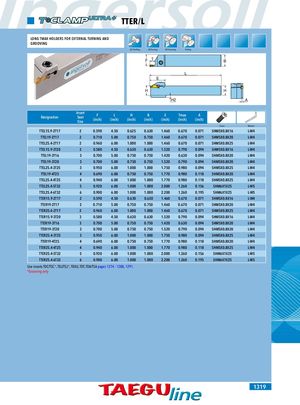

TTER/L
Длинные державки Tmax для наружного точения и обработки канавок
| Обозначение | Размер гнезда | F (дюйм) | L (дюйм) | H (дюйм) | B (дюйм) | E (дюйм) | Tmax (дюйм) | A (дюйм) | Винт | Ключ |
|---|---|---|---|---|---|---|---|---|---|---|
| TTEL15.9-2T17 | 2 | 0.590 | 4.50 | 0.625 | 0.630 | 1.460 | 0.670 | 0.071 | SHM5X0.8X16 | L-W4 |
| TTEL19-2T17 | 2 | 0.710 | 5.00 | 0.750 | 0.750 | 1.460 | 0.670 | 0.071 | SHM5X0.8X20 | L-W4 |
| TTEL25.4-2T17 | 2 | 0.960 | 6.00 | 1.000 | 1.000 | 1.460 | 0.670 | 0.071 | SHM5X0.8X25 | L-W4 |
| TTEL15.9-3T20 | 3 | 0.580 | 4.50 | 0.630 | 0.630 | 1.520 | 0.790 | 0.094 | SHM5X0.8X16 | L-W4 |
| TTEL19-3T16 | 3 | 0.700 | 5.00 | 0.750 | 0.750 | 1.420 | 0.630 | 0.094 | SHM5X0.8X20 | L-W4 |
| TTEL19-3T20 | 3 | 0.700 | 5.00 | 0.750 | 0.750 | 1.520 | 0.790 | 0.094 | SHM5X0.8X20 | L-W4 |
| TTEL25.4-3T25 | 3 | 0.950 | 6.00 | 1.000 | 1.000 | 1.750 | 0.980 | 0.094 | SHM5X0.8X25 | L-W4 |
| TTEL19-4T25 | 4 | 0.690 | 6.00 | 0.750 | 0.750 | 1.770 | 0.980 | 0.118 | SHM5X0.8X20 | L-W4 |
| TTEL25.4-4T25 | 4 | 0.940 | 6.00 | 1.000 | 1.000 | 1.770 | 0.980 | 0.118 | SHM5X0.8X25 | L-W4 |
| TTEL25.4-5T32 | 5 | 0.920 | 6.00 | 1.000 | 1.000 | 2.000 | 1.260 | 0.156 | SHM6X1X25 | L-W5 |
| TTEL25.4-6T32 | 6 | 0.900 | 6.00 | 1.000 | 1.000 | 2.200 | 1.260 | 0.195 | SHM6X1X25 | L-W5 |
| TTER15.9-2T17 | 2 | 0.590 | 4.50 | 0.630 | 0.630 | 1.460 | 0.670 | 0.071 | SHM5X0.8X16 | L-W4 |
| TTER19-2T17 | 2 | 0.710 | 5.00 | 0.750 | 0.750 | 1.460 | 0.670 | 0.071 | SHM5X0.8X20 | L-W4 |
| TTER25.4-2T17 | 2 | 0.960 | 6.00 | 1.000 | 1.000 | 1.460 | 0.670 | 0.071 | SHM5X0.8X25 | L-W4 |
| TTER15.9-3T20 | 3 | 0.580 | 4.50 | 0.630 | 0.630 | 1.520 | 0.790 | 0.094 | SHM5X0.8X16 | L-W4 |
| TTER19-3T16 | 3 | 0.700 | 5.00 | 0.750 | 0.750 | 1.420 | 0.630 | 0.094 | SHM5X0.8X20 | L-W4 |
| TTER19-3T20 | 3 | 0.700 | 5.00 | 0.750 | 0.750 | 1.520 | 0.790 | 0.094 | SHM5X0.8X20 | L-W4 |
| TTER25.4-3T25 | 3 | 0.950 | 6.00 | 1.000 | 1.000 | 1.750 | 0.980 | 0.094 | SHM5X0.8X25 | L-W4 |
| TTER19-4T25 | 4 | 0.690 | 6.00 | 0.750 | 0.750 | 1.770 | 0.980 | 0.118 | SHM5X0.8X20 | L-W4 |
| TTER25.4-4T25 | 4 | 0.940 | 6.00 | 1.000 | 1.000 | 1.770 | 0.980 | 0.118 | SHM5X0.8X25 | L-W4 |
| TTER25.4-5T32 | 5 | 0.920 | 6.00 | 1.000 | 1.000 | 2.000 | 1.260 | 0.156 | SHM6X1X25 | L-W5 |
| TTER25.4-6T32 | 6 | 0.900 | 6.00 | 1.000 | 1.000 | 2.200 | 1.260 | 0.195 | SHM6X1X25 | L-W5 |
Использовать вставки TDC/TSC*, TDJ/TSJ*, TDXU, TDT, TDA/TSA, страницы 1274 - 1288, 1291.
*Только для обработки канавок
