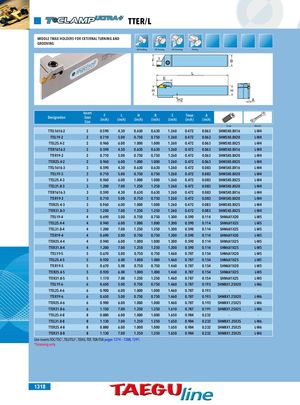

TTER/L
Средние державки Tmax для наружного точения и обработки канавок
| Обозначение | Размер гнезда | F (дюйм) | L (дюйм) | H (дюйм) | B (дюйм) | E (дюйм) | Tmax (дюйм) | A (дюйм) | Винт | Ключ |
|---|---|---|---|---|---|---|---|---|---|---|
| TTEL1616-2 | 2 | 0.590 | 4.30 | 0.630 | 0.630 | 1.260 | 0.472 | 0.063 | SHM5X0.8X16 | L-W4 |
| TTEL19-2 | 2 | 0.710 | 5.00 | 0.750 | 0.750 | 1.260 | 0.472 | 0.063 | SHM5X0.8X20 | L-W4 |
| TTEL25.4-2 | 2 | 0.960 | 6.00 | 1.000 | 1.000 | 1.260 | 0.472 | 0.063 | SHM5X0.8X25 | L-W4 |
| TTER1616-2 | 2 | 0.590 | 4.30 | 0.630 | 0.630 | 1.260 | 0.472 | 0.063 | SHM5X0.8X16 | L-W4 |
| TTER19-2 | 2 | 0.710 | 5.00 | 0.750 | 0.750 | 1.260 | 0.472 | 0.063 | SHM5X0.8X20 | L-W4 |
| TTER25.4-2 | 2 | 0.960 | 6.00 | 1.000 | 1.000 | 1.260 | 0.472 | 0.063 | SHM5X0.8X25 | L-W4 |
| TTEL1616-3 | 3 | 0.590 | 4.30 | 0.630 | 0.630 | 1.260 | 0.472 | 0.083 | SHM5X0.8X16 | L-W4 |
| TTEL19-3 | 3 | 0.710 | 5.00 | 0.750 | 0.750 | 1.260 | 0.472 | 0.083 | SHM5X0.8X20 | L-W4 |
| TTEL25.4-3 | 3 | 0.960 | 6.00 | 1.000 | 1.000 | 1.260 | 0.472 | 0.083 | SHM5X0.8X25 | L-W4 |
| TTEL31.8-3 | 3 | 1.200 | 7.00 | 1.250 | 1.250 | 1.260 | 0.472 | 0.083 | SHM5X0.8X20 | L-W4 |
| TTER1616-3 | 3 | 0.590 | 4.30 | 0.630 | 0.630 | 1.260 | 0.472 | 0.083 | SHM5X0.8X16 | L-W4 |
| TTER19-3 | 3 | 0.710 | 5.00 | 0.750 | 0.750 | 1.260 | 0.472 | 0.083 | SHM5X0.8X20 | L-W4 |
| TTER25.4-3 | 3 | 0.960 | 6.00 | 1.000 | 1.000 | 1.260 | 0.472 | 0.083 | SHM5X0.8X25 | L-W4 |
| TTER31.8-3 | 3 | 1.200 | 7.00 | 1.250 | 1.250 | 1.260 | 0.472 | 0.083 | SHM5X0.8X25 | L-W4 |
| TTEL19-4 | 4 | 0.690 | 5.00 | 0.750 | 0.750 | 1.300 | 0.590 | 0.114 | SHM6X1X20 | L-W5 |
| TTEL25.4-4 | 4 | 0.940 | 6.00 | 1.000 | 1.000 | 1.300 | 0.590 | 0.114 | SHM6X1X25 | L-W5 |
| TTEL31.8-4 | 4 | 1.200 | 7.00 | 1.250 | 1.250 | 1.300 | 0.590 | 0.114 | SHM6X1X25 | L-W5 |
| TTER19-4 | 4 | 0.690 | 5.00 | 0.750 | 0.750 | 1.300 | 0.590 | 0.114 | SHM6X1X20 | L-W5 |
| TTER25.4-4 | 4 | 0.940 | 6.00 | 1.000 | 1.000 | 1.300 | 0.590 | 0.114 | SHM6X1X25 | L-W5 |
| TTER31.8-4 | 4 | 1.200 | 7.00 | 1.250 | 1.250 | 1.300 | 0.590 | 0.114 | SHM6X1X25 | L-W5 |
| TTEL19-5 | 5 | 0.670 | 5.00 | 0.750 | 0.750 | 1.460 | 0.787 | 0.154 | SHM6X1X20 | L-W5 |
| TTEL25.4-5 | 5 | 0.920 | 6.00 | 1.000 | 1.000 | 1.460 | 0.787 | 0.154 | SHM6X1X25 | L-W5 |
| TTER19-5 | 5 | 0.670 | 5.00 | 0.750 | 0.750 | 1.460 | 0.787 | 0.154 | SHM6X1X20 | L-W5 |
| TTER25.4-5 | 5 | 0.920 | 6.00 | 1.000 | 1.000 | 1.460 | 0.787 | 0.154 | SHM6X1X25 | L-W5 |
| TTER31.8-5 | 5 | 1.170 | 7.00 | 1.250 | 1.250 | 1.460 | 0.787 | 0.154 | SHM6X1X25 | L-W5 |
| TTEL19-6 | 6 | 0.650 | 5.00 | 0.750 | 0.750 | 1.460 | 0.787 | 0.193 | SHM8X1.25X20 | L-W6 |
| TTEL25.4-6 | 6 | 0.900 | 6.00 | 1.000 | 1.000 | 1.460 | 0.787 | 0.193 | — | — |
| TTER19-6 | 6 | 0.650 | 5.00 | 0.750 | 0.750 | 1.460 | 0.787 | 0.193 | SHM8X1.25X20 | L-W6 |
| TTER25.4-6 | 6 | 0.900 | 6.00 | 1.000 | 1.000 | 1.460 | 0.787 | 0.193 | SHM8X1.25X25 | L-W6 |
| TTER31.8-6 | 6 | 1.150 | 7.00 | 1.250 | 1.250 | 1.610 | 0.787 | 0.191 | SHM8X1.25X25 | L-W6 |
| TTEL25.4-8 | 8 | 0.880 | 6.00 | 1.000 | 1.000 | 1.650 | 0.984 | 0.232 | — | — |
| TTEL31.8-8 | 8 | 1.130 | 7.00 | 1.250 | 1.250 | 1.650 | 0.984 | 0.232 | SHM8X1.25X25 | L-W6 |
| TTER25.4-8 | 8 | 0.880 | 6.00 | 1.000 | 1.000 | 1.650 | 0.984 | 0.232 | SHM8X1.25X25 | L-W6 |
| TTER31.8-8 | 8 | 1.130 | 7.00 | 1.250 | 1.250 | 1.650 | 0.984 | 0.232 | SHM8X1.25X25 | L-W6 |
Использовать вставки TDC/TSC*, TDJ/TSJ*, TDXU, TDT, TDA/TSA, страницы 1274 - 1288, 1291.
*Только для обработки канавок
