TTER/L

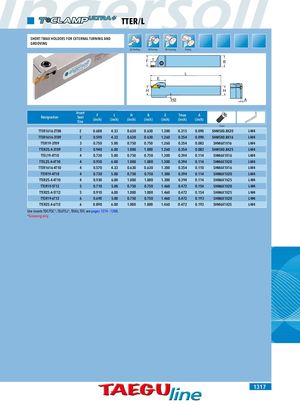

Короткие державки Tmax для наружного точения и обработки канавок
| Обозначение | Размер гнезда | F (дюйм) | L (дюйм) | H (дюйм) | B (дюйм) | E (дюйм) | Tmax (дюйм) | A (дюйм) | Винт | Ключ |
|---|---|---|---|---|---|---|---|---|---|---|
| TTER1616-2T08 | 2 | 0.600 | 4.33 | 0.630 | 0.630 | 1.300 | 0.315 | 0.090 | SHM5X0.8X20 | L-W4 |
| TTER1616-3T09 | 3 | 0.590 | 4.33 | 0.630 | 0.630 | 1.260 | 0.354 | 0.090 | SHM5X0.8X16 | L-W4 |
| TTER19-3T09 | 3 | 0.750 | 5.00 | 0.750 | 0.750 | 1.260 | 0.354 | 0.083 | SHM6X1X16 | L-W4 |
| TTER25.4-3T09 | 3 | 0.940 | 6.00 | 1.000 | 1.000 | 1.260 | 0.354 | 0.083 | SHM5X0.8X25 | L-W4 |
| TTEL19-4T10 | 4 | 0.730 | 5.00 | 0.750 | 0.750 | 1.300 | 0.394 | 0.114 | SHM6X1X16 | L-W4 |
| TTEL25.4-4T10 | 4 | 0.930 | 6.00 | 1.000 | 1.000 | 1.300 | 0.394 | 0.114 | SHM6X1X20 | L-W4 |
| TTER1616-4T10 | 4 | 0.570 | 4.33 | 0.630 | 0.630 | 1.300 | 0.354 | 0.110 | SHM6X1X16 | L-W4 |
| TTER19-4T10 | 4 | 0.730 | 5.00 | 0.750 | 0.750 | 1.300 | 0.394 | 0.114 | SHM6X1X20 | L-W4 |
| TTER25.4-4T10 | 4 | 0.930 | 6.00 | 1.000 | 1.000 | 1.300 | 0.394 | 0.114 | SHM6X1X25 | L-W4 |
| TTER19-5T12 | 5 | 0.710 | 5.00 | 0.750 | 0.750 | 1.460 | 0.472 | 0.154 | SHM6X1X20 | L-W4 |
| TTER25.4-5T12 | 5 | 0.910 | 6.00 | 1.000 | 1.000 | 1.460 | 0.472 | 0.154 | SHM6X1X25 | L-W4 |
| TTER19-6T12 | 6 | 0.690 | 5.00 | 0.750 | 0.750 | 1.460 | 0.472 | 0.193 | SHM6X1X20 | L-W4 |
| TTER25.4-6T12 | 6 | 0.890 | 6.00 | 1.000 | 1.000 | 1.460 | 0.472 | 0.193 | SHM6X1X25 | L-W4 |
Использовать вставки TDC/TSC*, TDJ/TSJ*, TDXU, TDT, см. страницы 1274 - 1288.
*Только для обработки канавок
