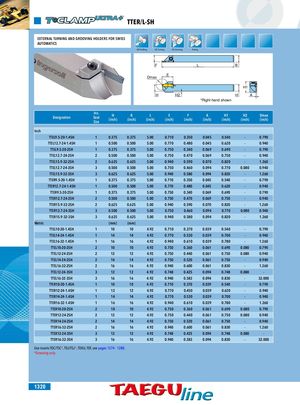

ДЕРЖАВКИ ДЛЯ НАРУЖНОГО ТОЧЕНИЯ И НАРЕЗАНИЯ КАНАВОК ДЛЯ ШВЕЙЦАРСКИХ АВТОМАТОВ
Профилирование OD Точение OD Нарезание канавок OD Отрезка
| Обозначение | Размер посадки вставки | H (дюйм) | B (дюйм) | L (дюйм) | E (дюйм) | F (дюйм) | A (дюйм) | H1 (дюйм) | H2 (дюйм) | Dmax (дюйм) |
|---|---|---|---|---|---|---|---|---|---|---|
| Дюймовые размеры | ||||||||||
| TTEL9.5-20-1.4SH | 1 | 0.375 | 0.375 | 5.00 | 0.710 | 0.350 | 0.045 | 0.540 | — | 0.790 |
| TTEL12.7-24-1.4SH | 1 | 0.500 | 0.500 | 5.00 | 0.770 | 0.480 | 0.045 | 0.620 | — | 0.940 |
| TTEL9.5-20-2SH | 1 | 0.375 | 0.375 | 5.00 | 0.750 | 0.340 | 0.069 | 0.690 | — | 0.790 |
| TTEL12.7-24-2SH | 2 | 0.500 | 0.500 | 5.00 | 0.750 | 0.470 | 0.069 | 0.750 | — | 0.940 |
| TTEL15.9-32-2SH | 2 | 0.625 | 0.625 | 5.00 | 0.940 | 0.590 | 0.070 | 0.820 | — | 1.260 |
| TTEL12.7-24-3SH | 3 | 0.500 | 0.500 | 5.00 | 0.750 | 0.460 | 0.094 | 0.770 | 0.080 | 0.940 |
| TTEL15.9-32-3SH | 3 | 0.625 | 0.625 | 5.00 | 0.940 | 0.580 | 0.094 | 0.820 | — | 1.260 |
| TTER9.5-20-1.4SH | 1 | 0.375 | 0.375 | 5.00 | 0.710 | 0.350 | 0.045 | 0.540 | — | 0.790 |
| TTER12.7-24-1.4SH | 1 | 0.500 | 0.500 | 5.00 | 0.770 | 0.480 | 0.045 | 0.620 | — | 0.940 |
| TTER9.5-20-2SH | 1 | 0.375 | 0.375 | 5.00 | 0.750 | 0.340 | 0.069 | 0.690 | — | 0.790 |
| TTER12.7-24-2SH | 2 | 0.500 | 0.500 | 5.00 | 0.750 | 0.470 | 0.069 | 0.750 | — | 0.940 |
| TTER15.9-32-2SH | 2 | 0.625 | 0.625 | 5.00 | 0.940 | 0.590 | 0.070 | 0.820 | — | 1.260 |
| TTER12.7-24-3SH | 3 | 0.500 | 0.500 | 5.00 | 0.750 | 0.460 | 0.094 | 0.770 | 0.080 | 0.940 |
| TTER15.9-32-3SH | 3 | 0.625 | 0.625 | 5.00 | 0.940 | 0.580 | 0.094 | 0.820 | — | 1.260 |
| Метрические размеры | ||||||||||
| TTEL10-20-1.4SH | 1 | 10 | 10 | 4.92 | 0.710 | 0.370 | 0.039 | 0.540 | — | 0.790 |
| TTEL14-24-1.4SH | 1 | 14 | 14 | 4.92 | 0.770 | 0.530 | 0.039 | 0.700 | — | 0.940 |
| TTEL16-32-1.4SH | 1 | 16 | 16 | 4.92 | 0.940 | 0.610 | 0.039 | 0.780 | — | 1.260 |
| TTEL10-20-2SH | 2 | 10 | 10 | 4.92 | 0.750 | 0.360 | 0.061 | 0.690 | 0.080 | 0.790 |
| TTEL12-24-2SH | 2 | 12 | 12 | 4.92 | 0.750 | 0.440 | 0.061 | 0.750 | 0.080 | 0.940 |
| TTEL14-24-2SH | 2 | 14 | 14 | 4.92 | 0.750 | 0.520 | 0.061 | 0.750 | — | 0.940 |
| TTEL16-32-2SH | 2 | 16 | 16 | 4.92 | 0.940 | 0.600 | 0.061 | 0.830 | — | 1.260 |
| TTEL12-24-3SH | 3 | 12 | 12 | 4.92 | 0.748 | 0.425 | 0.094 | 0.748 | 0.080 | — |
| TTEL16-32-3SH | 3 | 16 | 16 | 4.92 | 0.940 | 0.583 | 0.094 | 0.830 | — | 32.000 |
| TTER10-20-1.4SH | 1 | 10 | 10 | 4.92 | 0.710 | 0.370 | 0.039 | 0.540 | — | 0.790 |
| TTER12-24-1.4SH | 1 | 12 | 12 | 4.92 | 0.770 | 0.450 | 0.039 | 0.620 | — | 0.940 |
| TTER14-24-1.4SH | 1 | 14 | 14 | 4.92 | 0.770 | 0.530 | 0.039 | 0.700 | — | 0.940 |
| TTER16-32-1.4SH | 1 | 16 | 16 | 4.92 | 0.940 | 0.610 | 0.039 | 0.780 | — | 1.260 |
| TTER10-20-2SH | 2 | 10 | 10 | 4.92 | 0.750 | 0.360 | 0.061 | 0.690 | 0.080 | 0.790 |
| TTER12-24-2SH | 2 | 12 | 12 | 4.92 | 0.750 | 0.440 | 0.061 | 0.750 | 0.080 | 0.940 |
| TTER14-24-2SH | 2 | 14 | 14 | 4.92 | 0.750 | 0.520 | 0.061 | 0.750 | — | 0.940 |
| TTER16-32-2SH | 2 | 16 | 16 | 4.92 | 0.940 | 0.600 | 0.061 | 0.830 | — | 1.260 |
| TTER12-24-3SH | 3 | 12 | 12 | 4.92 | 0.748 | 0.425 | 0.094 | 0.748 | 0.080 | — |
| TTER16-32-3SH | 3 | 16 | 16 | 4.92 | 0.940 | 0.583 | 0.094 | 0.830 | — | 32.000 |
Используйте вставки TDC/TSC*, TDJ/TSJ*, TDXU, TDT, см. страницы 1274–1288.
*Только для нарезания канавок
