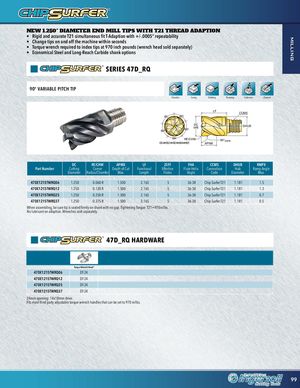

NEW 1.250" DIAMETER END MILL TIPS WITH T21 THREAD ADAPTION
- Rigid and accurate T21 simultaneous fit T-Adaption with +/-.0005” repeatability
- Change tips on and off the machine within seconds
- Torque wrench required to index tips at 970 inch pounds (wrench head sold separately)
- Economical Steel and Long-Reach Carbide shank options
SERIES 47D_RQ
90° VARIABLE PITCH TIP
Shoulder Facing Slabbing Ramping Corkscrew Channel
LF CCMS DC DHUB (e8) RE/CHW 90° KAPR APMX
| Part Number | DC Cutting Diameter | RE/CHW Corner Radius/Chamfer | APMX Depth of Cut Max. | LF Functional Length | ZEFF Effective Flutes | FHA Flute Helix Angle | CCMS Connection Code | DHUB Hub Diameter | RMPX Ramp Angle Max. |
| 47DE1215TWRQ06 | 1.250 | 0.060 R | 1.500 | 2.165 | 5 | 36-38 | Chip Surfer T21 | 1.181 | 1.5 |
| 47DE1215TWRQ12 | 1.250 | 0.120 R | 1.500 | 2.165 | 5 | 36-38 | Chip Surfer T21 | 1.181 | 1.3 |
| 47DE1215TWRQ25 | 1.250 | 0.250 R | 1.500 | 2.165 | 5 | 36-38 | Chip Surfer T21 | 1.181 | 0.7 |
| 47DE1215TWRQ37 | 1.250 | 0.375 R | 1.500 | 2.165 | 5 | 36-38 | ChipSurfer T21 | 1.181 | 0.5 |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T21=970in/lbs. No lubricant on adaption. Wrenches sold separately.
47D_RQ HARDWARE
| Torque Wrench Head | |
| 47DE1215TWRQ06 | DT-24 |
| 47DE1215TWRQ12 | DT-24 |
| 47DE1215TWRQ25 | DT-24 |
| 47DE1215TWRQ37 | DT-24 |
24mm opening: 14x18mm drive. Fits most third party adjustable torque wrench handles that can be set to 970 in/lbs.
