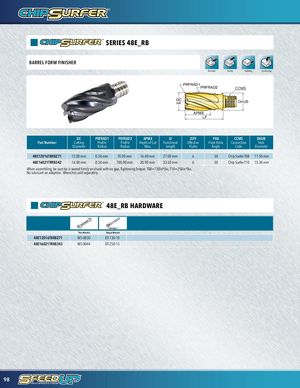

SERIES 48E_RB
BARREL FORM FINISHER
Shoulder Facing Slabbing Contouring
PRFRAD1 PRFRAD2 CCMS DC DHUB (e8) APMX LF
| DC | PRFRAD1 | PRFRAD2 | APMX | LF | ZEFF | FHA | CCMS | DHUB | |||||||||
| Part Number | Cutting | Profile | Profile | Depth of Cut | Functional | Effective | Flute Helix | Connection | Hub | ||||||||
| Diameter | Radius | Radius | Max. | Length | Flutes | Angle | Code | Diameter | |||||||||
| 48E12016T8RB271 | 12.00 mm | 0.50 mm | 70.00 mm | 16.40 mm | 27.00 mm | 6 | 30 | Chip Surfer T08 11.50 mm | |||||||||
| 48E16021TRRB342 | 16.00 mm | 0.50 mm | 100.00 mm | 20.90 mm | 33.50 mm | 6 | 30 | Chip Surfer T10 15.30 mm |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T08=130in*lbs, T10=250in*lbs. No lubricant on adaption. Wrenches sold separately.
48E_RB HARDWARE
| OPTIONAL | ||
| Thin Wrench | Torque Wrench | |
| 48E12016T8RB271 | WS-0030 | DT-130-10 |
| 48E16021TRRB342 | WS-0044 | DT-250-13 |
