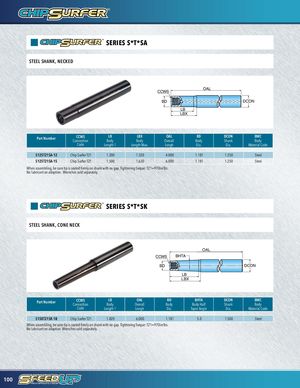

SERIES S*T*SA
STEEL SHANK, NECKED
OAL CCWS BD DCON LB LBX
| Part Number | CCWS | LB | LBX | OAL | BD | DCON | BMC | ||||
| Connection | Body | Body | Overall | Body | Shank | Body | |||||
| Code | Length 1 | Length Max. | Lengh | Dia. | Dia. | Material Code | |||||
| S125T21SA-12 | Chip Surfer T21 | 1.200 | 1.320 | 4.000 | 1.181 | 1.250 | Steel | ||||
| S125T21SA-15 | Chip Surfer T21 | 1.500 | 1.630 | 6.000 | 1.181 | 1.250 | Steel |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T21=970in/lbs. No lubricant on adaption. Wrenches sold separately.
SERIES S*T*SK
STEEL SHANK, CONE NECK
OAL CCWS BHTA BD DCON LB LBX
| CCWS | LB | OAL | BD | BHTA | DCON | BMC | |||||
| Part Number | Connection | Body | Overall | Body | Body Half | Shank | Body | ||||
| Code | Length 1 | Lengh | Dia. | Taper Angle | Dia. | Material Code | |||||
| S150T21SK-18 | Chip Surfer T21 | 1.820 | 6.000 | 1.181 | 5.0 | 1.500 | Steel |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T21=970in/lbs. No lubricant on adaption. Wrenches sold separately.
