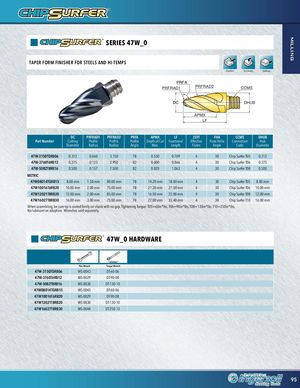

SERIES 47W_0
TAPER FORM FINISHER FOR STEELS AND HI-TEMPS
PRFA PRFRAD1
DC
Shoulder Contouring Slabbing
PRFRAD2 CCMS
DHUB APMX LF
| Part Number | DC Cutting Diameter | PRFRAD1 Profile Radius | PRFRAD2 Profile Radius | PRFA Profile Angle | APMX Depth of Cut Max. | LF Functional Length | ZEFF Effective Flutes | FHA Flute Helix Angle | CCMS Connection Code | DHUB Hub Diameter |
| 47W-3150TQRB06 | 0.312 | 0.060 | 3.150 | 78 | 0.530 | 0.709 | 4 | 30 | Chip Surfer T05 | 0.312 |
| 47W-3760T6RB12 | 0.375 | 0.123 | 2.950 | 82 | 0.600 | 0.866 | 4 | 30 | Chip Surfer T06 | 0.375 |
| 47W-5082T8RB16 | 0.500 | 0.157 | 7.500 | 82 | 0.820 | 1.063 | 4 | 30 | ChipSurfer T08 | 0.500 |
| METRIC | ||||||||||
| 47W08014TQRB15 | 8.00 mm | 1.50 mm | 80.00 mm | 78 | 14.20 mm | 18.00 mm | 4 | 30 | Chip Surfer T05 | 8.00 mm |
| 47W10016T6RB20 | 10.00 mm | 2.00 mm | 75.00 mm | 78 | 21.30 mm | 27.00 mm | 4 | 30 | Chip Surfer T06 | 10.00 mm |
| 47W12021T8RB20 | 12.00 mm | 2.00 mm | 85.00 mm | 78 | 16.50 mm | 22.00 mm | 4 | 30 | Chip Surfer T08 | 12.00 mm |
| 47W16027T8RB30 | 16.00 mm | 3.00 mm | 75.00 mm | 78 | 27.00 mm | 33.40 mm | 4 | 30 | ChipSurfer T10 | 16.00 mm |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs. No lubricant on adaption. Wrenches sold separately.
47W_0 HARDWARE
| OPTIONAL | ||
| Thin Wrench | Torque Wrench | |
| 47W-3150TQRB06 | WS-0043 | DT-60-06 |
| 47W-3760T6RB12 | WS-0029 | DT-90-08 |
| 47W-5082T8RB16 | WS-0030 | DT-130-10 |
| 47W08014TQRB15 | WS-0043 | DT-60-06 |
| 47W10016T6RB20 | WS-0029 | DT-90-08 |
| 47W12021T8RB20 | WS-0030 | DT-130-10 |
| 47W16027T8RB30 | WS-0044 | DT-250-13 |
