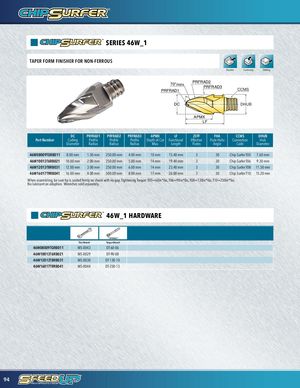

SERIES 46W_1
TAPER FORM FINISHER FOR NON-FERROUS
Shoulder Contouring Slabbing
70° PRFRAD2 PRFA PRFRAD3 PRFRAD1 CCMS DC DHUB
APMX LF
| DC | PRFRAD1 | PRFRAD2 | PRFRAD3 | APMX | LF | ZEFF | FHA | CCMS | DHUB | |||||
| Part Number | Cutting | Profile | Profile | Profile | Depth of Cut | Functional | Effective | Flute Helix | Connection | Hub | ||||
| Diameter | Radius | Radius | Radius | Max. | Length | Flutes | Angle | Code | Diameter | |||||
| 46W08009TQRB011 | 8.00 mm | 1.50 mm | 250.00 mm | 4.00 mm | 10 mm | 15.40 mm | 3 | 30 | Chip Surfer T05 | 7.60 mm | ||||
| 46W10013T6RB021 | 10.00 mm | 2.00 mm | 250.00 mm | 5.00 mm | 14 mm | 19.40 mm | 3 | 30 | Chip Surfer T06 | 9.30 mm | ||||
| 46W12013T8RB031 | 12.00 mm | 3.00 mm | 250.00 mm | 6.00 mm | 14 mm | 23.40 mm | 3 | 30 | Chip Surfer T08 | 11.50 mm | ||||
| 46W16017TRRB041 | 16.00 mm | 4.00 mm | 500.00 mm | 8.00 mm | 17 mm | 26.00 mm | 3 | 30 | Chip Surfer T10 | 15.20 mm |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs. No lubricant on adaption. Wrenches sold separately.
46W_1 HARDWARE
| OPTIONAL | ||
| Thin Wrench | Torque Wrench | |
| 46W08009TQRB011 | WS-0043 | DT-60-06 |
| 46W10013T6RB021 | WS-0029 | DT-90-08 |
| 46W12013T8RB031 | WS-0030 | DT-130-10 |
| 46W16017TRRB041 | WS-0044 | DT-250-13 |
