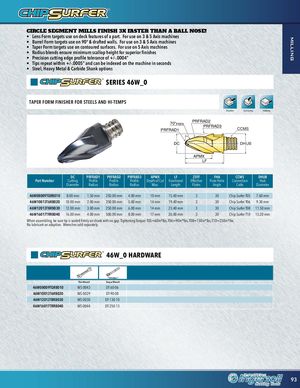

Каталог Ingersoll новинки 2021 - страница 93

Предыдущая страница Следующая страница

Навигация

CIRCLE SEGMENT MILLS FINISH 3X FASTER THAN A BALL NOSE!

  • Lens Form targets use on deck features of a part. For use on 3 & 5 Axis machines
  • Barrel Form targets use on 90° & drafted walls. For use on 3 & 5 Axis machines
  • Taper Form targets use on contoured surfaces. For use on 5 Axis machines
  • Radius blends ensure minimum scallop height for superior finishes
  • Precision cutting edge profile tolerance of +/-.0004”
  • Tips repeat within +/-.0005” and can be indexed on the machine in seconds
  • Steel, Heavy Metal & Carbide Shank options

SERIES 46W_0

TAPER FORM FINISHER FOR STEELS AND HI-TEMPS

Shoulder Contouring Slabbing

70° PRFRAD2 PRFA PRFRAD3 PRFRAD1 CCMS DC DHUB

APMX LF

Part NumberDC Cutting DiameterPRFRAD1 Profile RadiusPRFRAD2 Profile RadiusPRFRAD3 Profile RadiusAPMX Depth of Cut Max.LF Functional LengthZEFF Effective FlutesFHA Flute Helix AngleCCMS Connection CodeDHUB Hub Diameter
46W08009TQRB0108.00 mm1.50 mm250.00 mm4.00 mm10 mm15.40 mm330Chip Surfer T057.60 mm
46W10013T6RB02010.00 mm2.00 mm250.00 mm5.00 mm14 mm19.40 mm330Chip Surfer T069.30 mm
46W12013T8RB03012.00 mm3.00 mm250.00 mm6.00 mm14 mm23.40 mm330Chip Surfer T0811.50 mm
46W16017TRRB04016.00 mm4.00 mm500.00 mm8.00 mm17 mm26.00 mm330ChipSurfer T1015.20 mm

When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs. No lubricant on adaption. Wrenches sold separately.

46W_0 HARDWARE

OPTIONAL
Thin WrenchTorque Wrench
46W08009TQRB010WS-0043DT-60-06
46W10013T6RB020WS-0029DT-90-08
46W12013T8RB030WS-0030DT-130-10
46W16017TRRB040WS-0044DT-250-13
