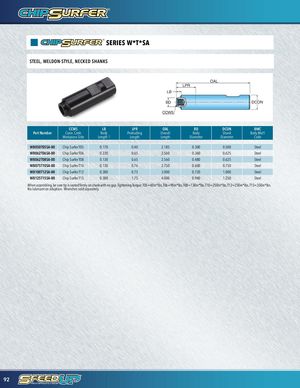

SERIES W*T*SA
STEEL, WELDON-STYLE, NECKED SHANKS
| CCWS BD LB | LPR O | AL | DCON | ||||
| Part Number | CCWS Conn. Code Workpiece Side | LB Body Length 1 | LPR Protruding Length | OAL Overall Length | BD Body Diameter | DCON Shank Diameter | BMC Body Mat’l Code |
| WB050T05SA-00 | Chip Surfer T05 | 0.170 | 0.40 | 2.185 | 0.300 | 0.500 | Steel |
| WB062T06SA-00 | Chip Surfer T06 | 0.230 | 0.65 | 2.560 | 0.360 | 0.625 | Steel |
| WB062T08SA-00 | Chip Surfer T08 | 0.130 | 0.65 | 2.560 | 0.480 | 0.625 | Steel |
| WB075T10SA-00 | Chip Surfer T10 | 0.130 | 0.76 | 2.750 | 0.600 | 0.750 | Steel |
| WB100T12SA-00 | Chip Surfer T12 | 0.300 | 0.75 | 3.000 | 0.720 | 1.000 | Steel |
| WB125T15SA-00 | ChipSurfer T15 | 0.300 | 1.75 | 4.000 | 0.940 | 1.250 | Steel |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs, T12=250in*lbs, T15=350in*lbs. No lubricant on adaption. Wrenches sold separately.
