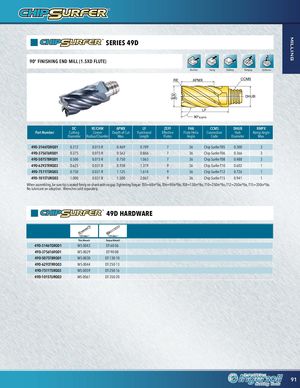

SERIES 49D
90° FINISHING END MILL (1.5XD FLUTE)
RE
DC (e8)
Shoulder Facing Slabbing Ramping Corkscrew
APMX CCMS
DHUB
LF 90°KAPR
| Part Number | DC Cutting Diameter | RE/CHW Corner Radius/Chamfer | APMX Depth of Cut Max. | LF Functional Length | ZEFF Effective Flutes | FHA Flute Helix Angle | CCMS Connection Code | DHUB Hub Diameter | RMPX Ramp Angle Max. |
| 49D-3146TQRQ01 | 0.312 | 0.015 R | 0.469 | 0.709 | 7 | 36 | Chip Surfer T05 | 0.300 | 3 |
| 49D-3756T6RQ01 | 0.375 | 0.015 R | 0.563 | 0.866 | 7 | 36 | Chip Surfer T06 | 0.366 | 3 |
| 49D-5075T8RQ01 | 0.500 | 0.015 R | 0.750 | 1.063 | 7 | 36 | Chip Surfer T08 | 0.488 | 3 |
| 49D-6293TRRQ03 | 0.625 | 0.031 R | 0.938 | 1.319 | 9 | 36 | Chip Surfer T10 | 0.602 | 1 |
| 49D-7511TSRQ03 | 0.750 | 0.031 R | 1.125 | 1.614 | 9 | 36 | Chip Surfer T12 | 0.726 | 1 |
| 49D-1015TURQ03 | 1.000 | 0.031 R | 1.500 | 2.067 | 9 | 36 | ChipSurfer T15 | 0.941 | 1 |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs, T12=250in*lbs, T15=350in*lbs. No lubricant on adaption. Wrenches sold separately.
49D HARDWARE
| OPTIONAL | OPTIONAL | |
| Thin Wrench | Torque Wrench | |
| 49D-3146TQRQ01 | WS-0043 | DT-60-06 |
| 49D-3756T6RQ01 | WS-0029 | DT-90-08 |
| 49D-5075T8RQ01 | WS-0030 | DT-130-10 |
| 49D-6293TRRQ03 | WS-0044 | DT-250-13 |
| 49D-7511TSRQ03 | WS-0059 | DT-250-16 |
| 49D-1015TURQ03 | WS-0061 | DT-350-20 |
