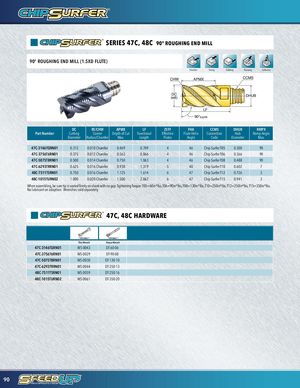

SERIES 47C, 48C 90º ROUGHING END MILL
90° ROUGHING END MILL (1.5XD FLUTE)
| Shoulder | Facing | Slabbing | Ramping | Corkscrew | |
| CHW | APMX | CCMS |
DC DHUB (e8) LF 90°KAPR
| Part Number | DC Cutting Diameter | RE/CHW Corner Radius/Chamfer | APMX Depth of Cut Max. | LF Functional Length | ZEFF Effective Flutes | FHA Flute Helix Angle | CCMS Connection Code | DHUB Hub Diameter | RMPX Ramp Angle Max. |
| 47C-3146TQRN01 | 0.312 | 0.010 Chamfer | 0.469 | 0.709 | 4 | 46 | Chip Surfer T05 | 0.300 | 90 |
| 47C-3756T6RN01 | 0.375 | 0.012 Chamfer | 0.563 | 0.866 | 4 | 46 | Chip Surfer T06 | 0.366 | 90 |
| 47C-5075T8RN01 | 0.500 | 0.014 Chamfer | 0.750 | 1.063 | 4 | 46 | Chip Surfer T08 | 0.488 | 90 |
| 47C-6293TRRN01 | 0.625 | 0.016 Chamfer | 0.938 | 1.319 | 5 | 40 | Chip Surfer T10 | 0.602 | 7 |
| 48C-7511TSRN01 | 0.750 | 0.016 Chamfer | 1.125 | 1.614 | 6 | 47 | Chip Surfer T12 | 0.726 | 3 |
| 48C-1015TURN02 | 1.000 | 0.020 Chamfer | 1.500 | 2.067 | 6 | 47 | ChipSurfer T15 | 0.941 | 3 |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs, T12=250in*lbs, T15=350in*lbs. No lubricant on adaption. Wrenches sold separately.
47C, 48C HARDWARE
| OPTIONAL | OPTIONAL | |
| Thin Wrench | Torque Wrench | |
| 47C-3146TQRN01 | WS-0043 | DT-60-06 |
| 47C-3756T6RN01 | WS-0029 | DT-90-08 |
| 47C-5075T8RN01 | WS-0030 | DT-130-10 |
| 47C-6293TRRN01 | WS-0044 | DT-250-13 |
| 48C-7511TSRN01 | WS-0059 | DT-250-16 |
| 48C-1015TURN02 | WS-0061 | DT-350-20 |
