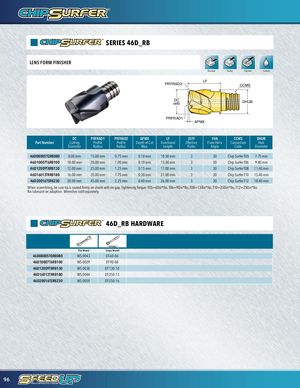

SERIES 46D_RB
LENS FORM FINISHER
PRFRAD2
DC (e8)
PRFRAD1
Shoulder Facing Channel Coolant
LF CCMS
DHUB
APMX
| Part Number | DC Cutting Diameter | PRFRAD1 Profile Radius | PRFRAD2 Profile Radius | APMX Depth of Cut Max. | LF Functional Length | ZEFF Effective Flutes | FHA Flute Helix Angle | CCMS Connection Code | DHUB Hub Diameter |
| 46D08005TQRB080 | 8.00 mm | 15.00 mm | 0.75 mm | 0.10 mm | 10.50 mm | 3 | 30 | Chip Surfer T05 | 7.75 mm |
| 46D10007T6RB100 | 10.00 mm | 20.00 mm | 1.00 mm | 0.10 mm | 13.50 mm | 3 | 30 | Chip Surfer T06 | 9.40 mm |
| 46D12009T8RB130 | 12.00 mm | 25.00 mm | 1.25 mm | 0.15 mm | 17.00 mm | 3 | 30 | Chip Surfer T08 | 11.40 mm |
| 46D16013TRRB180 | 16.00 mm | 35.00 mm | 1.75 mm | 0.30 mm | 21.00 mm | 3 | 30 | Chip Surfer T10 | 15.40 mm |
| 46D20016TSRB230 | 20.00 mm | 45.00 mm | 2.25 mm | 0.40 mm | 26.00 mm | 3 | 30 | ChipSurfer T12 | 18.40 mm |
When assembling, be sure tip is seated firmly on shank with no gap. Tightening Torque: T05=60in*lbs, T06=90in*lbs, T08=130in*lbs, T10=250in*lbs, T12=250in*lbs. No lubricant on adaption. Wrenches sold separately.
46D_RB HARDWARE
| OPTIONAL | ||
| Thin Wrench | Torque Wrench | |
| 46D08005TQRB080 | WS-0043 | DT-60-06 |
| 46D10007T6RB100 | WS-0029 | DT-90-08 |
| 46D12009T8RB130 | WS-0030 | DT-130-10 |
| 46D16013TRRB180 | WS-0044 | DT-250-13 |
| 46D20016TSRB230 | WS-0059 | DT-250-16 |
