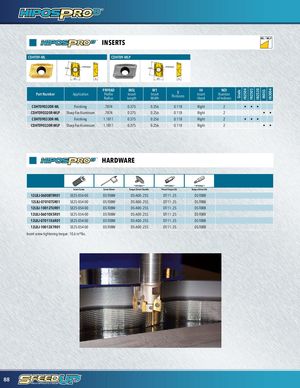

| INSERT | S | ML / MLP | ||||||||
| CDHT09-ML | CDHT0 | 9-MLP | ||||||||
| S W1 INSL PRFRAD | W1 INSL P | S RFRAD | ||||||||
| Part Number | Application | PRFRAD Profile Radius | INSL Insert Length | W1 Insert Width | S Thickness | IH Insert Hand | NOI Number of Indexes | Grade IN2504 | IN2505 | IN2530 IN05S IN3004 |
| CDHT090320R-ML | Finishing | .7874 | 0.375 | 0.256 | 0.118 | Right | 2 | • | • | • |
| CDHT090320R-MLP | Sharp-For Aluminum | .7874 | 0.375 | 0.256 | 0.118 | Right | 2 | • • | ||
| CDHT090330R-ML | Finishing | 1.1811 | 0.375 | 0.256 | 0.118 | Right | 2 | • | • | • |
| CDHT090330R-MLP | Sharp-For Aluminum | 1.1811 | 0.375 | 0.256 | 0.118 | Right | 2 | • • |
HARDWARE
| OPTIONAL | OPTIONAL | OPTIONAL | |||
| Insert Screw | Screw Driver | Torque Driver Handle | Preset Torque Bit | Torque Driver Bit | |
| 12L8J-06008TRR01 | SE25-054-00 | DS-T08W | DS-A00-.25S | DT-11-.25 | DS-T08B |
| 12L8J-07010TSR01 | SE25-054-00 | DS-T08W | DS-A00-.25S | DT-11-.25 | DS-T08B |
| 12L8J-10012TUR01 | SE25-054-00 | DS-T08W | DS-A00-.25S | DT-11-.25 | DS-T08B |
| 12L8J-06010X5R01 | SE25-054-00 | DS-T08W | DS-A00-.25S | DT-11-.25 | DS-T08B |
| 12L8J-07011X6R01 | SE25-054-00 | DS-T08W | DS-A00-.25S | DT-11-.25 | DS-T08B |
| 12L8J-10013X7R01 | SE25-054-00 | DS-T08W | DS-A00-.25S | DT-11-.25 | DS-T08B |
Insert screw tightening torque: 10.6 in*lbs.
