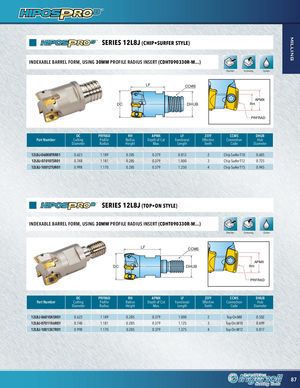

SERIES 12L8J (CHIP•SURFER STYLE)
INDEXABLE BARREL FORM, USING 30MM PROFILE RADIUS INSERT (CDHT090330R-M…)
LF CCMS
DC DHUB
Shoulder Contouring Coolant
APMX RH PRFRAD
| DC | PRFRAD | RH | APMX | LF | ZEFF | CCMS | DHUB | ||
| Part Number Cutting | Profile | Radius | Depth of Cut | Functional | Effective | Connection | Hub | ||
| Diameter | Radius | Height | Max. | Length | Teeth | Code | Diameter | ||
| 12L8J-06008TRR01 | 0.623 | 1.189 | 0.285 | 0.379 | 0.813 | 2 | Chip Surfer T10 | 0.605 | |
| 12L8J-07010TSR01 | 0.748 | 1.181 | 0.285 | 0.379 | 1.000 | 3 | Chip Surfer T12 | 0.725 | |
| 12L8J-10012TUR01 | 0.998 | 1.170 | 0.285 | 0.379 | 1.250 | 4 | Chip Surfer T15 | 0.945 |
SERIES 12L8J (TOP•ON STYLE)
INDEXABLE BARREL FORM, USING 30MM PROFILE RADIUS INSERT (CDHT090330R-M…)
LF CCMS
DC DHUB
Shoulder Contouring Coolant
APMX RH PRFRAD
| DC | PRFRAD | RH | APMX | LF | ZEFF | CCMS | DHUB | ||
| Part Number Cutting | Profile | Radius | Depth of Cut | Functional | Effective | Connection | Hub | ||
| Diameter | Radius | Height | Max. | Length | Teeth | Code | Diameter | ||
| 12L8J-06010X5R01 | 0.623 | 1.189 | 0.285 | 0.379 | 1.000 | 2 | Top-On M8 | 0.502 | |
| 12L8J-07011X6R01 | 0.748 | 1.181 | 0.285 | 0.379 | 1.125 | 3 | Top-On M10 | 0.699 | |
| 12L8J-10013X7R01 | 0.998 | 1.170 | 0.285 | 0.379 | 1.375 | 4 | Top-On M12 | 0.817 |
