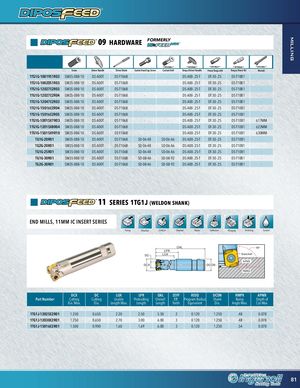

09 HARDWARE FORMERLY
| **OPTIONAL** | **OPTIONAL** | **OPTIONAL** | **OPTIONAL** | **OPTIONAL** | |||||||||
| Screw Driver Handle | Driver Blade | Socket Head Cap Screw | Coolant Bolt | Torque Driver Handle | Preset Torque Bit | Torque Driver Bit | Wrench | ||||||
| 1TG1G-10019S1R03 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| 1TG1G-10020S1R03 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| 1TG1G-12027E2R03 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| 1TG1G-12027E2R04 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| 1TG1G-12047E2R03 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| 1TG1G-15016E2R04 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| 1TG1G-15016E2R05 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| 1TG1G-10015X7R03 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | 617MM | ||||
| 1TG1G-12015X8R04 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | 622MM | ||||
| 1TG1G-15015X9R10 | SM35-088-10 | DS-A00T | DS-T106B | - | - | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | 630MM | ||||
| TG1G-20R01 | SM35-088-10 | DS-A00T | DS-T106B | SD-06-48 | SD-06-A6 | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| TG2G-20R01 | SM35-088-10 | DS-A00T | DS-T106B | SD-06-48 | SD-06-A6 | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| TG1G-25R01 | SM35-088-10 | DS-A00T | DS-T106B | SD-06-48 | SD-06-A6 | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| TG1G-30R01 | SM35-088-10 | DS-A00T | DS-T106B | SD-08-46 | SD-08-92 | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - | ||||
| TG2G-30R01 | SM35-088-10 | DS-A00T | DS-T106B | SD-08-46 | SD-08-92 | DS-A00-.25-T | DT-30-.25 | DS-T10B1 | - |
11 SERIES 1TG1J
(WELDON SHANK)
END MILLS, 11MM IC INSERT SERIES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
OAL 90° LPR
DC LUX Backdraft
APMX DCX DCON REEQ
| DCX | DC | LUX | LPR | OAL | ZEFF | REEQ | DCON | RMPX | APMX | |
| Part Number Cutting | Cutting | Usable | Protruding | Overall | Eff. | Program Radius | Shank | Ramp | Depth of | |
| Dia. Max. | Dia. | Length Max. | Length | Length | Teeth | Equivalent | Dia. | Angle Max. | Cut Max. | |
| 1TG1J-12025E2R01 | 1.250 | 0.650 | 2.20 | 2.50 | 5.50 | 2 | 0.120 | 1.250 | .48 | 0.078 |
| 1TG1J-12030E2R01 | 1.250 | 0.650 | 2.70 | 3.00 | 6.00 | 3 | 0.120 | 1.250 | .48 | 0.078 |
| 1TG1J-15016E2R01 | 1.500 | 0.900 | 1.60 | 1.69 | 6.00 | 3 | 0.120 | 1.250 | .54 | 0.078 |
