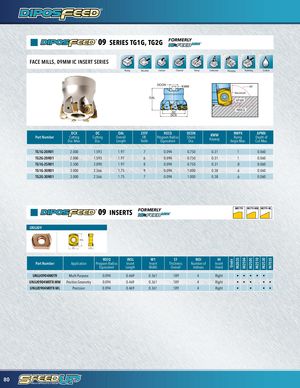

09 SERIES TG1G, TG2G FORMERLY
FACE MILLS, 09MM IC INSERT SERIES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
DCON
OAL
DC DCX
KWW
90° Backdraft APMX REEQ
| DCX | DC | OAL | ZEFF | REEQ | DCON | KWW | RMPX | APMX | |||
| Part Number | Cutting | Cutting | Overall | Eff. | Program Radius | Shank | Keyway | Ramp | Depth of | ||
| Dia. Max. | Dia. | Length | Teeth | Equivalent | Dia. | Angle Max. | Cut Max. | ||||
| TG1G-20R01 | 2.000 | 1.593 | 1.97 | 7 | 0.094 | 0.750 | 0.31 | 1 | 0.060 | ||
| TG2G-20R01 | 2.000 | 1.593 | 1.97 | 6 | 0.094 | 0.750 | 0.31 | 1 | 0.060 | ||
| TG1G-25R01 | 2.500 | 2.090 | 1.97 | 8 | 0.094 | 0.750 | 0.31 | .8 | 0.060 | ||
| TG1G-30R01 | 3.000 | 2.566 | 1.75 | 9 | 0.094 | 1.000 | 0.38 | .6 | 0.060 | ||
| TG2G-30R01 | 3.000 | 2.566 | 1.75 | 7 | 0.094 | 1.000 | 0.38 | .6 | 0.060 | ||
| 09 INSERTS | FORMERLY | MOTR | MOTR-MM | MOTR-ML |
UNLU09
INSL
W1 S1
REEQ INSL W1 S1 NOI IH
| Part Number | Application | Program Radius | Insert | Insert | Thickness | Number of | Insert | |||||||
| Equivalent | Length | Width | Overall | Indexes | Hand | |||||||||
| UNLU0904M0TR | Multi-Purpose | 0.094 | 0.469 | 0.361 | .189 | 4 | Right | • • • • • | ||||||
| UNLU0904M0TR-MM | Positive Geometry | 0.094 | 0.469 | 0.361 | .189 | 4 | Right | • • • | • • | |||||
| UNLU0904M0TR-ML | Precision | 0.094 | 0.469 | 0.361 | .189 | 4 | Right | • | • | • • |
