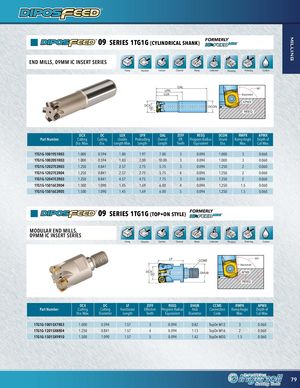

09 SERIES 1TG1G FORMERLY
(CYLINDRICAL SHANK)
END MILLS, 09MM IC INSERT SERIES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
OAL LPR LUX DCX DC
DCON
90° Backdraft APMX REEQ
| DCX | DC | LUX | LPR | OAL | ZEFF | REEQ | DCON | RMPX | APMX | |
| Part Number Cutting | Cutting | Usable | Protruding | Overall | Eff. | Program Radius | Shank | Ramp Angle | Depth of | |
| Dia. Max. | Dia. | Length Max. | Length | Length | Teeth | Equivalent | Dia. | Max. | Cut Max. | |
| 1TG1G-10019S1R03 | 1.000 | 0.594 | 1.80 | 1.97 | 7.00 | 3 | 0.094 | 1.000 | 3 | 0.060 |
| 1TG1G-10020S1R03 | 1.000 | 0.594 | 1.83 | 2.00 | 10.00 | 3 | 0.094 | 1.000 | 3 | 0.060 |
| 1TG1G-12027E2R03 | 1.250 | 0.841 | 2.57 | 2.75 | 5.75 | 3 | 0.094 | 1.250 | 2 | 0.060 |
| 1TG1G-12027E2R04 | 1.250 | 0.841 | 2.57 | 2.75 | 5.75 | 4 | 0.094 | 1.250 | 2 | 0.060 |
| 1TG1G-12047E2R03 | 1.250 | 0.841 | 4.57 | 4.75 | 7.75 | 3 | 0.094 | 1.250 | 2 | 0.060 |
| 1TG1G-15016E2R04 | 1.500 | 1.090 | 1.45 | 1.69 | 6.00 | 4 | 0.094 | 1.250 | 1.5 | 0.060 |
| 1TG1G-15016E2R05 | 1.500 | 1.090 | 1.45 | 1.69 | 6.00 | 5 | 0.094 | 1.250 | 1.5 | 0.060 |
09 SERIES 1TG1G FORMERLY
(TOP•ON STYLE)
MODULAR END MILLS,
09MM IC INSERT SERIES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
LF CCMS 90°
Backdraft
DCX DHUB APMX
DC REEQ
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS | RMPX | APMX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection | Ramp Angle | Depth of | ||
| Dia. Max. | Diameter | Length | Teeth | Equivalent | Diameter | Code | Max. | Cut Max. | ||
| 1TG1G-10015X7R03 | 1.000 | 0.594 | 1.57 | 3 | 0.094 | 0.82 | TopOn M12 | 3 | 0.060 | |
| 1TG1G-12015X8R04 | 1.250 | 0.841 | 1.57 | 4 | 0.094 | 1.13 | TopOn M16 | 2 | 0.060 | |
| 1TG1G-15015X9R10 | 1.500 | 1.090 | 1.57 | 5 | 0.094 | 1.42 | TopOn M20 | 1.5 | 0.060 |
