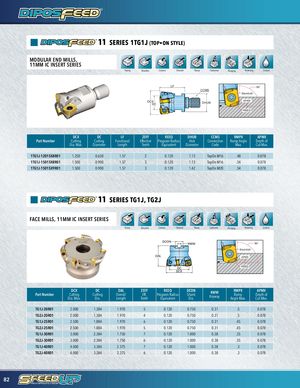

MODULAR END MILLS,
11MM IC INSERT SERIES
11 SERIES 1TG1J
(TOP•ON STYLE)
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
LF 90° CCMS Backdraft
DCX DHUB APMX
DC REEQ
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS | RMPX | APMX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection | Ramp Angle | Depth of | ||
| Dia. Max. | Diameter | Length | Teeth | Equivalent | Diameter | Code | Max. | Cut Max. | ||
| 1TG1J-12015X8R01 | 1.250 | 0.650 | 1.57 | 2 | 0.120 | 1.13 | TopOn M16 | .48 | 0.078 | |
| 1TG1J-15015X8R01 | 1.500 | 0.900 | 1.57 | 3 | 0.120 | 1.13 | TopOn M16 | .54 | 0.078 | |
| 1TG1J-15015X9R01 | 1.500 | 0.900 | 1.57 | 3 | 0.120 | 1.42 | TopOn M20 | .54 | 0.078 |
11 SERIES TG1J, TG2J
FACE MILLS, 11MM IC INSERT SERIES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
DCON KWW 90° Backdraft OAL APMX DC REEQ DCX
| DCX | DC | OAL | ZEFF | REEQ | DCON | KWW | RMPX | APMX | |
| Part Number | Cutting | Cutting | Overall | Eff. | Program Radius | Shank | Keyway | Ramp | Depth of |
| Dia. Max. | Dia. | Length | Teeth | Equivalent | Dia. | Angle Max. | Cut Max. | ||
| TG1J-20R01 | 2.000 | 1.384 | 1.970 | 5 | 0.120 | 0.750 | 0.31 | .5 | 0.078 |
| TG2J-20R01 | 2.000 | 1.384 | 1.970 | 4 | 0.120 | 0.750 | 0.31 | .5 | 0.078 |
| TG1J-25R01 | 2.500 | 1.884 | 1.970 | 6 | 0.120 | 0.750 | 0.31 | .45 | 0.078 |
| TG2J-25R01 | 2.500 | 1.884 | 1.970 | 5 | 0.120 | 0.750 | 0.31 | .45 | 0.078 |
| TG1J-30R01 | 3.000 | 2.384 | 1.750 | 7 | 0.120 | 1.000 | 0.38 | .35 | 0.078 |
| TG2J-30R01 | 3.000 | 2.384 | 1.750 | 6 | 0.120 | 1.000 | 0.38 | .35 | 0.078 |
| TG1J-40R01 | 4.000 | 3.384 | 2.375 | 7 | 0.120 | 1.000 | 0.38 | .3 | 0.078 |
| TG2J-40R01 | 4.000 | 3.384 | 2.375 | 6 | 0.120 | 1.000 | 0.38 | .3 | 0.078 |
